SKU: 40-3-SD-NO26-RENOLD
Renold SD 40-3-NO26 ANSI / AS Triplex Chain Connecting Link With Spring Clip 1/2 inch Pitch
Renold SD 40-3-NO26 ANSI / AS Triplex Chain Connecting Link With Spring Clip 1/2 inch Pitch
Regular price
£7.81
ex VAT£9.37inc. VAT
Regular price
Sale price
£7.81
ex VAT£9.37
inc. VAT
In stock
Price Break
2+
£6.95
5+
£6.56
10+
£6.48
29+
£6.40
49+
£6.33
75+
£6.25
100+
£5.86
200+
£5.78
250+
£5.70
500+
£5.62
1000+
£5.47
Description
Description

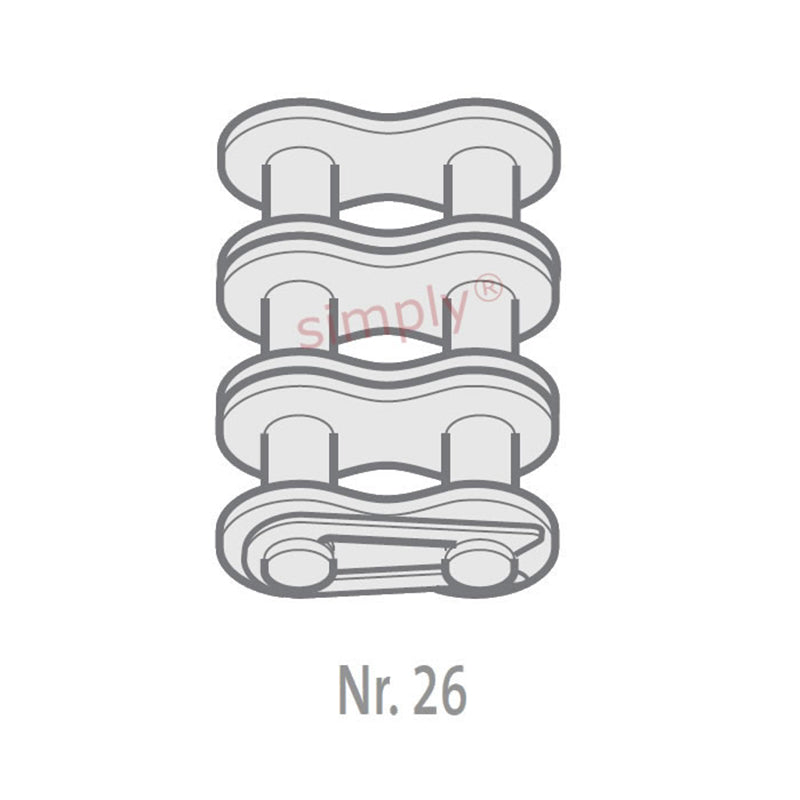

| Renold No. 26 ANSI Triplex Connecting Link: Used on short pitch chains only. Supplied with two connecting pins riveted into the outer plate, the clearance fit connecting plate being secured by means of a spring clip, No. 27, which snaps into the grooves in the pins. |
- Brand / Quality:
- Renold - High Quality
- Pitch:
- 12.7mm = 0.5 (1/2) inch
Technical
Technical
| Pitch (A) | 0.5 inch |
|---|---|
| Pitch (A) | 12.7mm |
| Inside Width min (B) | 7.85mm |
| Roller Diameter max (C) | 7.95mm |
| Plate Height max (D) | 11.9mm |
| Plate Width Inner max (E) | 1.5mm |
| Plate Width Outer max (F) | 1.5mm |
| Pin Diameter max (G) | 3.96mm |
| Pin Length max (H1) | 45.2mm |
| Connecting Link Extension max (J) | 3.45mm |
| ISO606 Tensile Strength min | 41700 N |
| Weight | 14.38kg/m |
