SKU: 40-2-SYN-NO12-RENOLD
Renold Synergy 40-2-NO12 ANSI / AS Duplex Chain Single Cranked Cottered Link 1/2 inch Pitch
Renold Synergy 40-2-NO12 ANSI / AS Duplex Chain Single Cranked Cottered Link 1/2 inch Pitch
Regular price
£44.26
ex VAT£53.11inc. VAT
Regular price
Sale price
£44.26
ex VAT£53.11
inc. VAT
In stock
Price Break
10+
£39.39
19+
£37.18
29+
£36.74
39+
£36.29
49+
£35.85
74+
£35.41
99+
£33.20
199+
£32.75
249+
£32.31
499+
£31.87
999+
£30.98
Couldn't load pickup availability
Description
Description

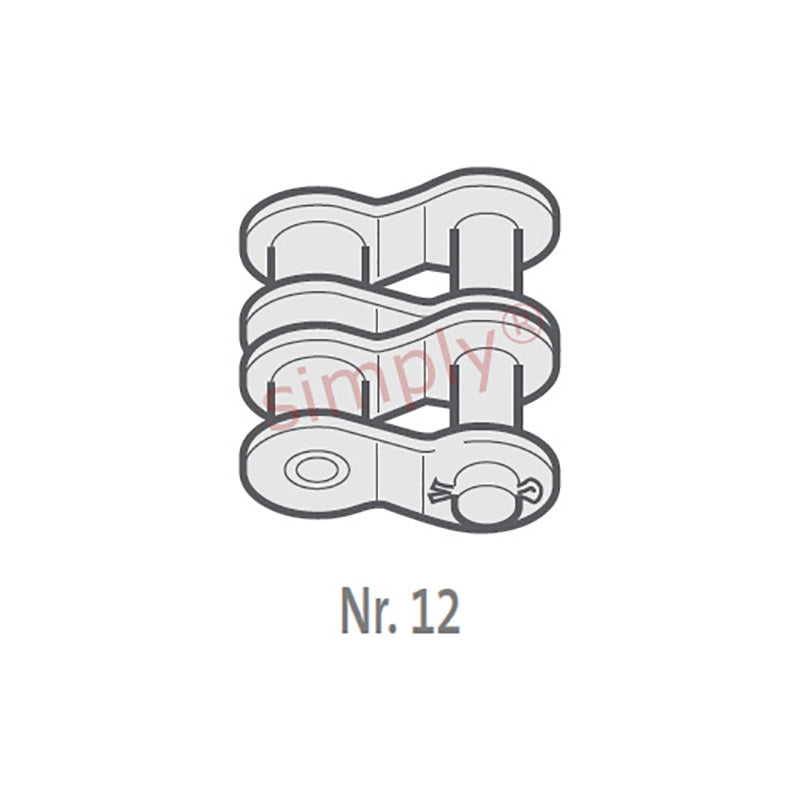

| Renold No. 12 ANSI Duplex Connecting Link: A single link with cranked plates pressed onto a bush and roller assemble at the narrow end. A clearance fit connecting pin (No. 128) is fitted at the wide end and is secured by a split pin. |
- Brand / Quality:
- Renold - High Quality
- Pitch:
- 12.7mm = 0.5 (1/2) inch
Technical
Technical
| Pitch (A) | 0.5 inch |
|---|---|
| Pitch (A) | 12.7mm |
| Inside Width min (B) | 7.85mm |
| Roller Diameter max (C) | 7.92mm |
| Plate Height max (D) | 11.2mm |
| Plate Width Inner max (E) | 1.55mm |
| Plate Width Outer max (F) | 1.55mm |
| Pin Diameter max (G) | 3.97mm |
| Pin Length max (H2) | 30.8mm |
| Connecting Link Extension max (J) | 2.1mm |
| Transverse Pitch nom (K) | 14.38mm |
| ISO606 Tensile Strength min | 27800 N |
| Weight | 0.02kg/m |
