SKU: 40-1-SD-NO26-RENOLD
Renold SD 40-1-NO26 ANSI / AS Simplex Chain Connecting Link With Spring Clip 1/2 inch Pitch
Renold SD 40-1-NO26 ANSI / AS Simplex Chain Connecting Link With Spring Clip 1/2 inch Pitch
Regular price
£4.46
ex VAT£5.35inc. VAT
Regular price
Sale price
£4.46
ex VAT£5.35
inc. VAT
In stock
Price Break
10+
£3.97
19+
£3.75
29+
£3.70
39+
£3.66
49+
£3.61
74+
£3.57
99+
£3.35
199+
£3.30
249+
£3.26
499+
£3.21
999+
£3.12
Couldn't load pickup availability
Description
Description

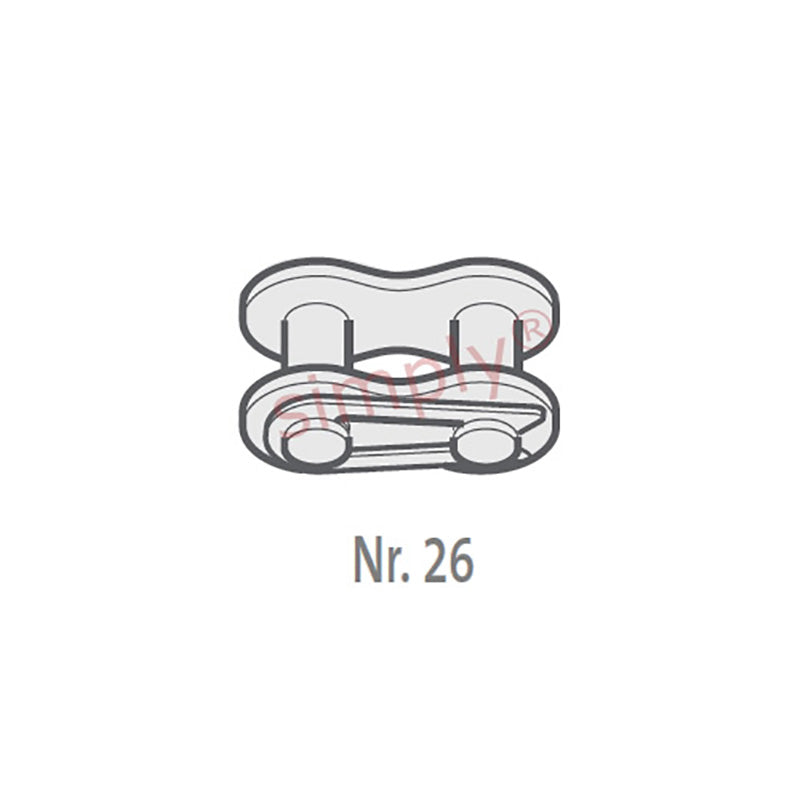

| Renold No. 26 ANSI Simplex Connecting Link: Used on short pitch chains only. Supplied with two connecting pins riveted into the outer plate, the clearance fit connecting plate being secured by means of a spring clip, No. 27, which snaps into the grooves in the pins. |
- Brand / Quality:
- Renold - High Quality
- Pitch:
- 12.7mm = 0.5 (1/2) inch
Technical
Technical
| Pitch (A) | 0.5 inch |
|---|---|
| Pitch (A) | 12.7mm |
| Inside Width min (B) | 7.85mm |
| Roller Diameter max (C) | 7.95mm |
| Plate Height max (D) | 11.9mm |
| Plate Width Inner max (E) | 1.5mm |
| Plate Width Outer max (F) | 1.5mm |
| Pin Diameter max (G) | 3.96mm |
| Pin Length max (H1) | 16.6mm |
| Connecting Link Extension max (J) | 1.15mm |
| ISO606 Tensile Strength min | 13900 N |
| Weight | 0.01kg/m |
