SKU: 40-1-BB-NO26-RENOLD
Renold Blue Box 40-1-NO26 ANSI / AS Simplex Chain Connecting Link With Spring Clip 1/2 inch Pitch
Renold Blue Box 40-1-NO26 ANSI / AS Simplex Chain Connecting Link With Spring Clip 1/2 inch Pitch
Regular price
£6.05
ex VAT£7.26inc. VAT
Regular price
Sale price
£6.05
ex VAT£7.26
inc. VAT
In stock
Price Break
10+
£5.38
19+
£5.08
29+
£5.02
39+
£4.96
49+
£4.90
74+
£4.84
99+
£4.54
199+
£4.48
249+
£4.42
499+
£4.36
999+
£4.24
Couldn't load pickup availability
Description
Description

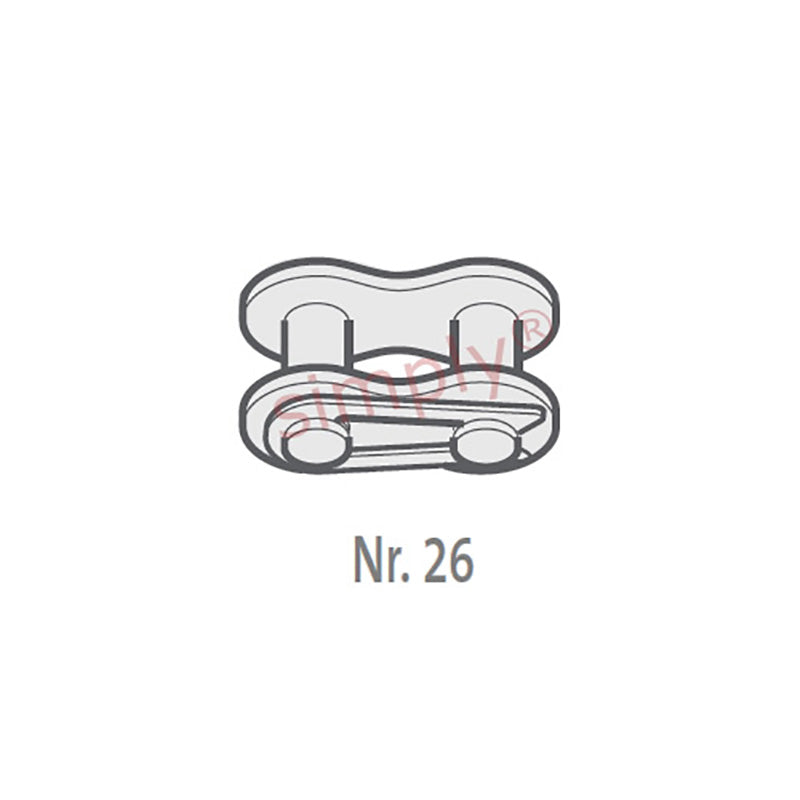

| Renold No. 26 ANSI Simplex Connecting Link: Used on short pitch chains only. Supplied with two connecting pins riveted into the outer plate, the clearance fit connecting plate being secured by means of a spring clip, No. 27, which snaps into the grooves in the pins. |
- Brand / Quality:
- Renold - High Quality
- Pitch:
- 12.7mm = 0.5 (1/2) inch
Technical
Technical
| Pitch (A) | 0.5 inch |
|---|---|
| Pitch (A) | 12.7mm |
| Inside Width min (B) | 6.35mm |
| Roller Diameter max (C) | 7.77mm |
| Plate Height max (D) | 9.91mm |
| Plate Width Inner max (E) | 1.3mm |
| Plate Width Outer max (F) | 1.3mm |
| Pin Diameter max (G) | 3.96mm |
| Pin Length max (H2) | 14.5mm |
| Connecting Link Extension max (J) | 2.1mm |
| ISO606 Tensile Strength min | 6700 N |
| Weight | 0.01kg/m |
