SKU: 35-3-BB-NO26-RENOLD
Renold Blue Box 35-3-NO26 ANSI / AS Triplex Chain Connecting Link With Spring Clip 3/8 inch Pitch
Renold Blue Box 35-3-NO26 ANSI / AS Triplex Chain Connecting Link With Spring Clip 3/8 inch Pitch
Regular price
£13.06
ex VAT£15.67inc. VAT
Regular price
Sale price
£13.06
ex VAT£15.67
inc. VAT
In stock
Price Break
10+
£11.62
19+
£10.97
29+
£10.84
39+
£10.71
49+
£10.58
74+
£10.45
99+
£9.80
199+
£9.66
249+
£9.53
499+
£9.40
999+
£9.14
Couldn't load pickup availability
Description
Description

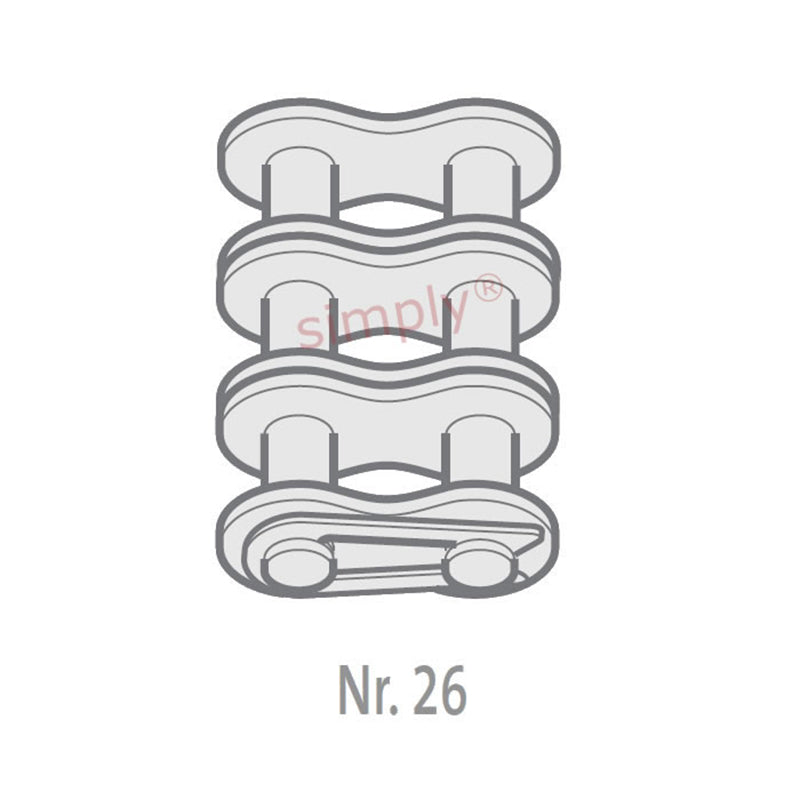

| Renold No. 26 ANSI Triplex Connecting Link: Used on short pitch chains only. Supplied with two connecting pins riveted into the outer plate, the clearance fit connecting plate being secured by means of a spring clip, No. 27, which snaps into the grooves in the pins. |
- Brand / Quality:
- Renold - High Quality
- Pitch:
- 9.53mm = 0.375 (3/8) inch
Technical
Technical
| Pitch (A) | 0.375 inch |
|---|---|
| Pitch (A) | 9.525mm |
| Inside Width min (B) | 4.68mm |
| Roller Diameter max (C) | 5.08mm |
| Plate Height max (D) | 8.6mm |
| Plate Width Inner max (E) | 1.29mm |
| Plate Width Outer max (F) | 1.29mm |
| Pin Diameter max (G) | 3.59mm |
| Pin Length max (H2) | 32.2mm |
| Connecting Link Extension max (J) | 1.7mm |
| Transverse Pitch nom (K) | 10.13mm |
| ISO606 Tensile Strength min | 23700 N |
| Weight | 1.8kg/m |
