SKU: 35-2-SYNERGY-10FT-RENOLD

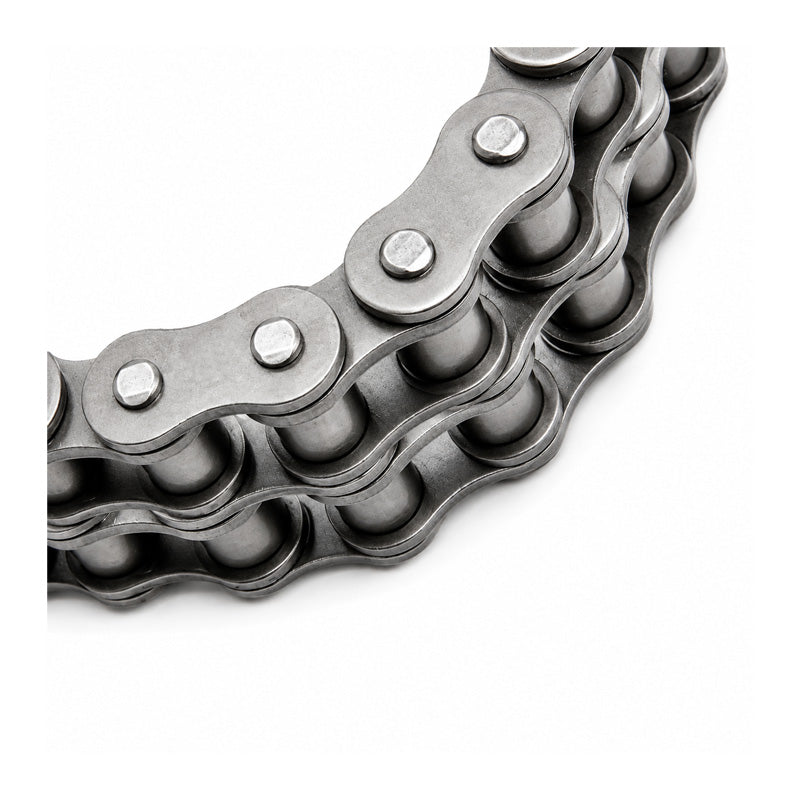

Renold Synergy 35-2 ANSI / AS Duplex Roller Chain 3/8 inch Pitch - 10 Feet Length - Allow 2-3 Days
Renold Synergy 35-2 ANSI / AS Duplex Roller Chain 3/8 inch Pitch - 10 Feet Length - Allow 2-3 Days
Regular price
£473.30
ex VAT£567.96inc. VAT
Regular price
Sale price
£473.30
ex VAT£567.96
inc. VAT
Equivalent to: GY35A2
In stock
Price Break
10+
£421.24
19+
£397.57
29+
£392.84
39+
£388.11
49+
£383.37
74+
£378.64
99+
£354.98
199+
£350.24
249+
£345.51
499+
£340.78
999+
£331.31
Couldn't load pickup availability
Description
Description
Renold Synergy High Performance Chain: Renold Synergy chain will last three times longer in normal working conditions than your current non-Renold chain or your next chain is free. It's that simple. If the working life of your non Renold Chain is unsatisfactory, try Renold Synergy®. You will see productivity increase, downtime cut and costs saved. Renold are so confident that their chain will significantly outlast any other non-Renold brand chain that we will give you a replacement chain free*. There has never been a better time to specify Renold Synergy® - the only high performance transmission chain.
Equivalent: GY35A2
* Subject to site visit from a Renold Service Engineer
Renold Synergy® has transformed the productivity and efficiency of all these industrial applications and more.
Equivalent: GY35A2
- Brand / Quality:
- Renold - High Quality
- Pitch:
- 9.53mm = 0.375 (3/8) inch
Technical
Technical
| Pitch (A) | 0.375 inch |
|---|---|
| Pitch (A) | 9.525mm |
| Inside Width min (B) | 4.68mm |
| Roller Diameter max (C) | 5.08mm |
| Plate Height max (D) | 8.6mm |
| Plate Width Inner max (E) | 1.29mm |
| Plate Width Outer max (F) | 1.29mm |
| Pin Diameter max (G) | 3.59mm |
| Pin Length max (H2) | 22.2mm |
| Connecting Link Extension max (J) | 1.7mm |
| Transverse Pitch nom (K) | 10.13mm |
| ISO606 Tensile Strength min | 15800 N |
| Weight | 0.62kg/m |
