SKU: 35-1-SD-NO26-RENOLD
Renold SD 35-1-NO26 ANSI / AS Simplex Chain Connecting Link With Spring Clip 3/8 inch Pitch
Renold SD 35-1-NO26 ANSI / AS Simplex Chain Connecting Link With Spring Clip 3/8 inch Pitch
Regular price
£4.31
ex VAT£5.17inc. VAT
Regular price
Sale price
£4.31
ex VAT£5.17
inc. VAT
In stock
Price Break
10+
£3.84
19+
£3.62
29+
£3.58
39+
£3.53
49+
£3.49
74+
£3.45
99+
£3.23
199+
£3.19
249+
£3.15
499+
£3.10
999+
£3.02
Couldn't load pickup availability
Description
Description

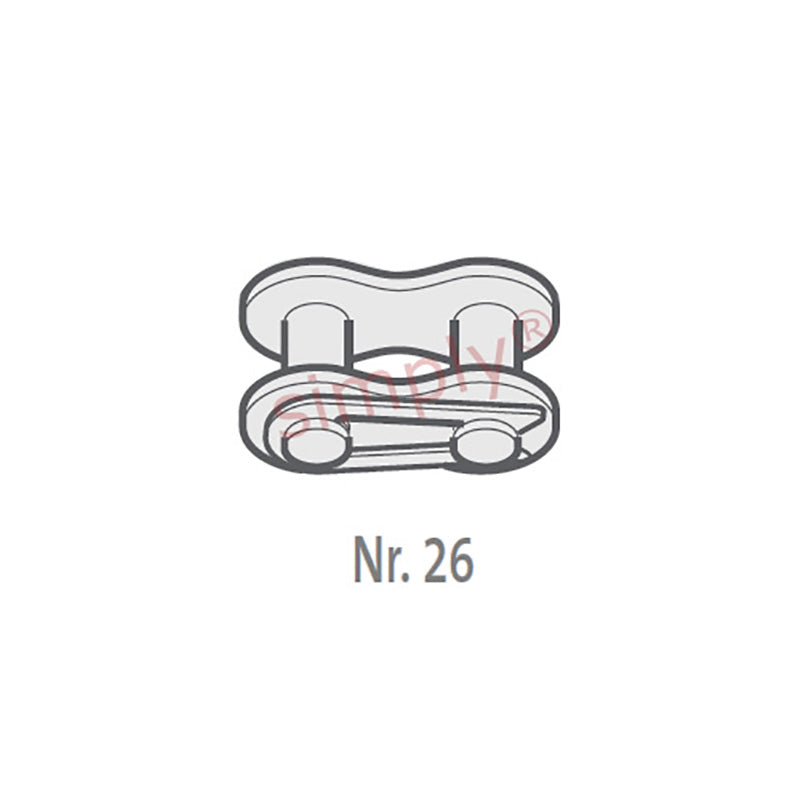

| Renold No. 26 ANSI Simplex Connecting Link: Used on short pitch chains only. Supplied with two connecting pins riveted into the outer plate, the clearance fit connecting plate being secured by means of a spring clip, No. 27, which snaps into the grooves in the pins. |
- Brand / Quality:
- Renold - High Quality
- Pitch:
- 9.53mm = 0.375 (3/8) inch
Technical
Technical
| Pitch (A) | 0.375 inch |
|---|---|
| Pitch (A) | 9.525mm |
| Inside Width min (B) | 4.77mm |
| Roller Diameter max (C) | 5.08mm |
| Plate Height max (D) | 8.95mm |
| Plate Width Inner max (E) | 1.2mm |
| Plate Width Outer max (F) | 1.2mm |
| Pin Diameter max (G) | 3.58mm |
| Pin Length max (H1) | 12.15mm |
| Connecting Link Extension max (J) | 0.949999999999999mm |
| ISO606 Tensile Strength min | 7900 N |
| Weight | 0.008kg/m |
