SKU: 35-1-BB-NO30-RENOLD
Renold Blue Box 35-1-NO30 ANSI / AS Simplex Chain Double Cranked Link 3/8 inch Pitch
Renold Blue Box 35-1-NO30 ANSI / AS Simplex Chain Double Cranked Link 3/8 inch Pitch
Regular price
£8.31
ex VAT£9.97inc. VAT
Regular price
Sale price
£8.31
ex VAT£9.97
inc. VAT
In stock
Price Break
10+
£7.40
19+
£6.98
29+
£6.90
39+
£6.81
49+
£6.73
74+
£6.65
99+
£6.23
199+
£6.15
249+
£6.07
499+
£5.98
999+
£5.82
Couldn't load pickup availability
Description
Description

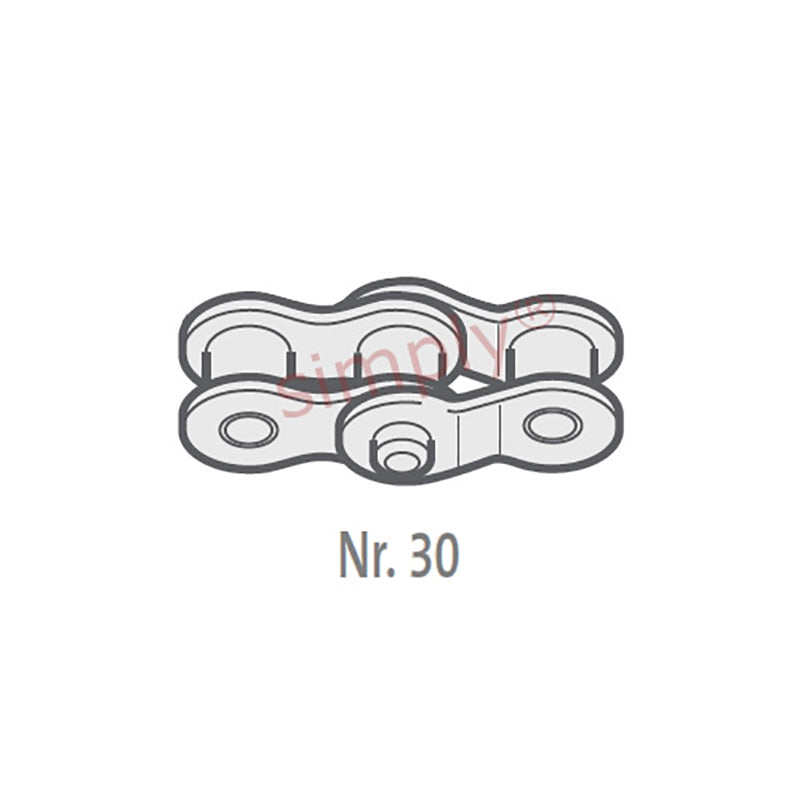

| Renold No. 30 ANSI Simplex Connecting Link: Double cranked links are available for most sizes and types of chain. The unit consists of an inner link (No. 4), with cranked links retained permanently in position by a riveted bearing pin. |
- Brand / Quality:
- Renold - High Quality
- Pitch:
- 9.53mm = 0.375 (3/8) inch
Technical
Technical
| Pitch (A) | 0.5 inch |
|---|---|
| Pitch (A) | 9.525mm |
| Inside Width min (B) | 7.85mm |
| Roller Diameter max (C) | 7.92mm |
| Plate Height max (D) | 11.2mm |
| Plate Width Inner max (E) | 1.55mm |
| Plate Width Outer max (F) | 1.55mm |
| Pin Diameter max (G) | 3.97mm |
| Pin Length max (H2) | 16.4mm |
| Connecting Link Extension max (J) | 2.1mm |
| ISO606 Tensile Strength min | 13900 N |
| Weight | 0.008kg/m |
