SKU: 32B-2-BB-NO11-RENOLD
Renold Blue Box 32B-2-NO11 BS Duplex Chain Cottered Connecting Link 2 inch Pitch
Renold Blue Box 32B-2-NO11 BS Duplex Chain Cottered Connecting Link 2 inch Pitch
Regular price
£122.61
ex VAT£147.13inc. VAT
Regular price
Sale price
£122.61
ex VAT£147.13
inc. VAT
In stock
Price Break
2+
£109.12
5+
£102.99
10+
£101.76
29+
£100.54
49+
£99.31
75+
£98.09
100+
£91.96
200+
£90.73
250+
£89.50
500+
£88.28
1000+
£85.83
Description
Description

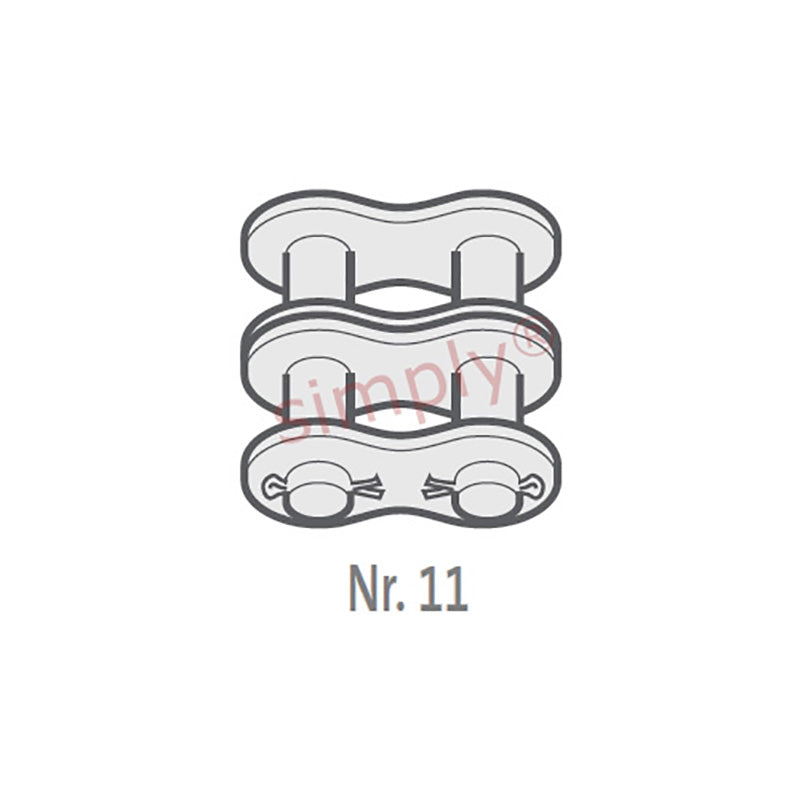

| Renold No. 11 European (BS) Duplex Connecting Link: A connecting link supplied with two connecting pins riveted into the outer plate. The outer plate is a clearance fit on the connecting pins and is secured in a position by a split pin through the projecting end of each connecting pin. |
- Brand / Quality:
- Renold - High Quality
- Pitch:
- 50.8mm = 2 inch
Technical
Technical
| Pitch (A) | 2 inch |
|---|---|
| Pitch (A) | 50.8mm |
| Inside Width min (B) | 30.99mm |
| Roller Diameter max (C) | 29.21mm |
| Plate Height max (D) | 42.29mm |
| Plate Width Inner max (E) | 7.11mm |
| Plate Width Outer max (F) | 6.35mm |
| Pin Diameter max (G) | 17.81mm |
| Pin Length max (H1) | 122mm |
| Connecting Link Extension max (J) | 8mm |
| ISO606 Tensile Strength min | 450000 N |
| Weight | 0.34kg/m |
