Major Brand 32914 Metric Taper Roller Bearing 70x100x20mm
Major Brand 32914 Metric Taper Roller Bearing 70x100x20mm
Regular price
£102.94
ex VAT£123.53inc. VAT
Regular price
Sale price
£102.94
ex VAT£123.53
inc. VAT
Equivalent to: 32914XU 32914JR 32914J
In stock
Price Break
3+
£91.62
5+
£86.47
9+
£85.44
19+
£84.41
49+
£83.39
74+
£82.36
99+
£77.21
199+
£76.18
249+
£75.15
499+
£74.12
999+
£72.06
Description
Description
|
Metric Taper Roller Bearings: These bearings have tapered inner and outer raceways between which tapered roller are arranged. The design of taper rollers makes them particularly suited to accommodating combined axial and radial loads. They are supplied as a cup and cone set (inner and outer). Benefits: Used widely in transmissions, can be used in oil or greased, high radial and axial load |
Equivalent: 32914XU 32914JR 32914J
- Brand / Quality:
- Major Brand - High Quality
- Inside Diameter:
- 70mm
- Outside Diameter:
- 100mm
- Width:
- 20mm
- Seals / Shields:
- None
Technical
Technical

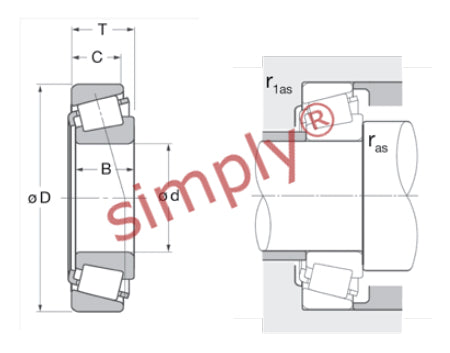

| Inner Diameter d | 70mm |
|---|---|
| Outer Diameter D | 100mm |
| Inner Ring width B | 20mm |
| Outer Ring Width C | 16mm |
| Total width T | 20mm |
| Maxium Shaft Link Radius r<sub>as</sub>max | 1mm |
| Maxium Housing Link Radius r<sub>1as</sub>max | 1mm |
| Weight | 0.487kg |
| Dynamic Load Capacity C | 68.5 kN |
| Static Load capacity C0 | 110 kN |
| Limit Speed with Grease LUB | 3400 rpm |
| Limit Speed with Oil LUB | 4600 rpm |
