SKU: 32230AK-NILOS

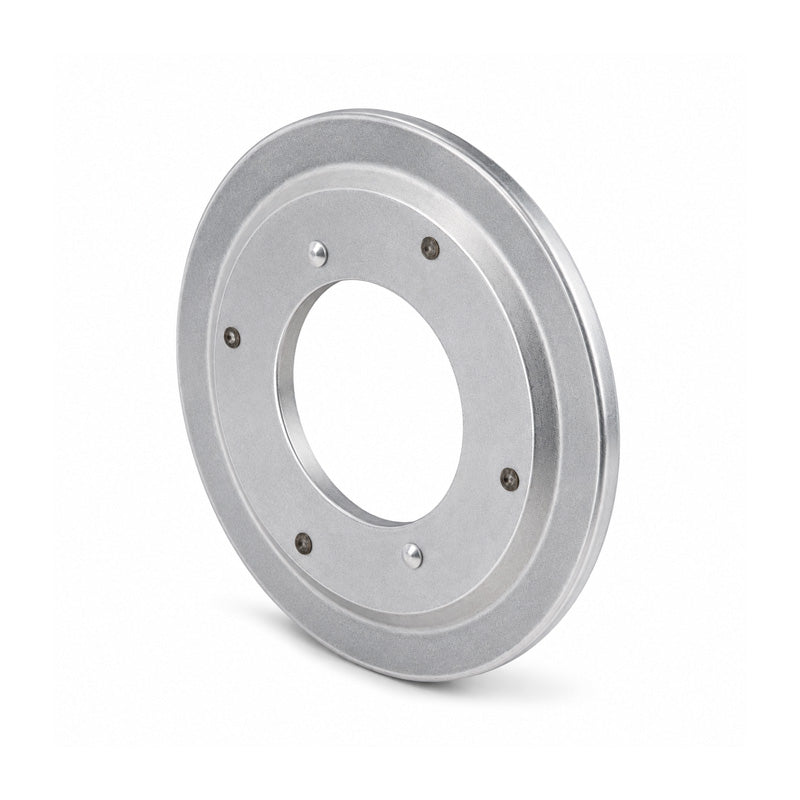

32230AK Nilos Ring for 32230 Series Bearings 150x273x5mm
32230AK Nilos Ring for 32230 Series Bearings 150x273x5mm
Regular price
£48.41
ex VAT£58.09inc. VAT
Regular price
Sale price
£48.41
ex VAT£58.09
inc. VAT
In stock
Price Break
10+
£43.08
19+
£40.66
29+
£40.18
39+
£39.70
49+
£39.21
74+
£38.73
99+
£36.31
199+
£35.82
249+
£35.34
499+
£34.86
999+
£33.89
Description
Description
Nilos AK Sealing Rings: A Nilos ring that seals the outer ring of a tapered roller bearing. The unique two-disk design enables double-sealing of the bearing's outer ring.
Nilos rings are required in particular installations where excess dirt or debris may be present that could penetrate the bearing, if some further mechanical protection is required or if condensation is formed.
- Brand / Quality:
- Nilos - High Quality
- Inside Diameter:
- 150mm
- Outside Diameter:
- 273mm
- Width:
- 5mm
- Thickness:
- 0.5mm
- Item Type:
- AK Nilos Ring
Technical
Technical
| Fits Bearing | 32230 |
|---|---|
| Bearing id | 150mm |
| Bearing od | 270mm |
| Bearing width | 60mm |
| a1 | 260mm |
| a2 | 273mm |
| c | 208mm |
| d | 150mm |
| w | 180mm |
| h | 5mm |
| s1 | 0.5mm |
| s2 | 0.5mm |
| G | 274mm |
| g | 271mm |
| t | 78.5mm |
