SKU: 32213U-NTN

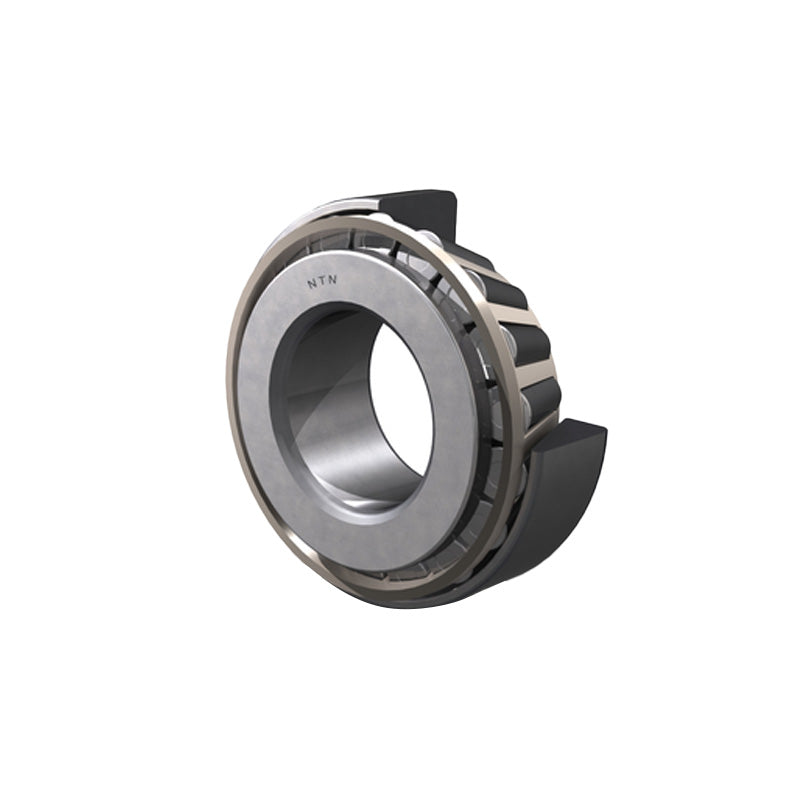

NTN 32213U Tapered Roller Bearing Cup and Cone Set 65x120x32.75mm

NTN 32213U Tapered Roller Bearing Cup and Cone Set 65x120x32.75mm
Regular price £65.54 ex VAT£78.65inc. VAT
Regular price Sale price £65.54 ex VAT£78.65 inc. VAT
Sale Sold out

In stock

Price Break
3+ £58.33
5+ £55.05
10+ £54.40
25+ £53.74
49+ £53.09
74+ £52.43
99+ £49.16
199+ £48.50
249+ £47.84
499+ £47.19
999+ £45.88
Quantity
Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Technical
--- Bearing dimensions
d 65mm
D 120mm
T 32.75mm
B 31mm
C 27mm
r<sub>s</sub> min 2mm
r<sub>ls</sub> min 1.5mm
--- Speeds and loads
Dynamic load C<sub>r</sub> 176kN
Static load C<sub>or</sub> 206kN
Fatigue Load limit C<sub>u</sub> 25.1kN
Allowable Speed in grease 3100rpm
Allowable Speed in oil 4200rpm
--- Abutment dimensions
ISO Dimension series 3EC
d<sub>a</sub> min 75mm
d<sub>b</sub> max 75.5mm
D<sub>a</sub> max 111.5mm
D<sub>a</sub> min 101.5mm
D<sub>b</sub> min 115.5mm
S<sub>a</sub> min 4mm
S<sub>b</sub> min 5.5mm
r<sub>as</sub> max 2mm
r<sub>1as</sub> max 1.5mm
Load center a 27mm
Constant e 0.4mm
Y<sub>2</sub> 1.48mm
Y<sub>0</sub> 0.81mm
Weight 1.57kg
