SKU: 3211A/C3-SKF

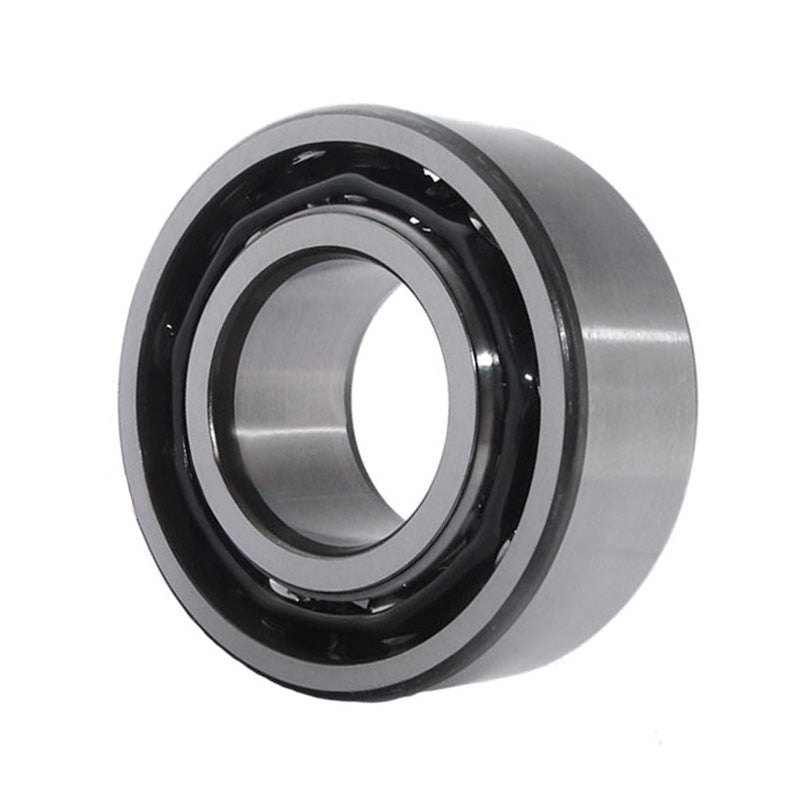

SKF 3211AC3 Double Row Angular Contact Ball Bearing Steel Cage 55x100x33.3mm
SKF 3211AC3 Double Row Angular Contact Ball Bearing Steel Cage 55x100x33.3mm
Regular price
£116.30
ex VAT£139.56inc. VAT
Regular price
Sale price
£116.30
ex VAT£139.56
inc. VAT
Equivalent to: 5211
In stock
Price Break
4+
£103.51
8+
£97.69
12+
£96.53
16+
£95.37
25+
£94.20
50+
£93.04
99+
£87.23
199+
£86.06
249+
£84.90
499+
£83.74
999+
£81.41
Description
Description
|
SKF Open Type Double Row Angular Contact Ball Bearings: Correspond to the design of two single row angular contact ball bearings side by side but occupying less space. They can accommodate radial loads as well as axial loads acting in both directions. They provide a rigid bearing arrangement and accommodate tilting moments well. Benefits: Compact, rigid, accommodates tilting, radial and axial loads |
Equivalent: 5211
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 55mm
- Outside Diameter:
- 100mm
- Width:
- 33.3mm
- Seals / Shields:
- None
- Clearance:
- C3
Technical
Technical
| d | 55mm |
|---|---|
| D | 100mm |
| B | 33.3mm |
| Dynamic load Cr | 60 kN |
| Static load Cor | 47.5 kN |
| Fatigue load limit Pu | 2 kN |
| Reference speed | 6300 rpm |
| Limiting speed | 6300 rpm |
| Weight | 1.05 kg |
| d1 | 63.2mm |
| D1 | 92.3mm |
| r1r2 min | 1.5mm |
| a | 57mm |
| da min | 63mm |
| Da max | 91mm |
| ra max | 1.5mm |
