• Timken 30234 Metric Taper Roller Bearing 170x310x57mm
1 1

SKU: 30234-TIM

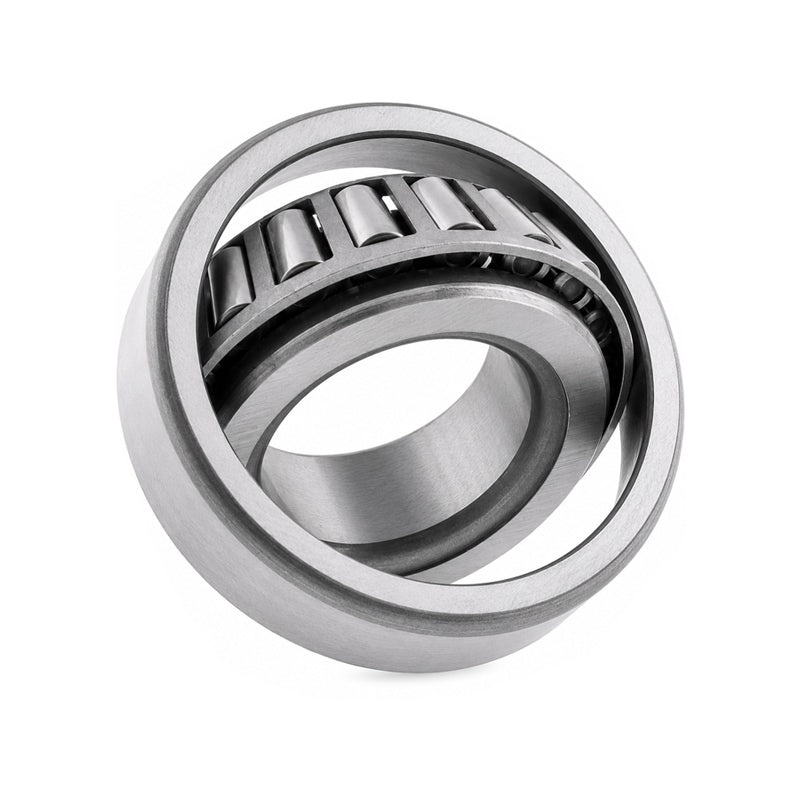

Timken 30234 Metric Taper Roller Bearing 170x310x57mm

Timken 30234 Metric Taper Roller Bearing 170x310x57mm
£2,281.28 ex VAT£2,737.54inc. VAT
£2,281.28 ex VAT£2,737.54 inc. VAT
Sale Sold out

In stock

Price Break
10+ £2,030.34
20+ £1,916.27
30+ £1,893.46
40+ £1,870.65
50+ £1,847.83
75+ £1,825.02
100+ £1,710.96
200+ £1,688.15
250+ £1,665.33
500+ £1,642.52
1000+ £1,596.89
Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Metric Taper Roller Bearings: These bearings have tapered inner and outer raceways between which tapered roller are arranged. The design of taper rollers makes them particularly suited to accommodating combined axial and radial loads. They are supplied as a cup and cone set (inner and outer).
Benefits: Used widely in transmissions, can be used in oil or greased, high radial and axial load
Brand / Quality:
Timken - High Quality
Inside Diameter:
170mm
Outside Diameter:
310mm
Width:
57mm
Technical
d 170mm
D 310mm
T 57mm
Dynamic load 616 kN
Static load 865 kN
Fatigue load limit Pu 83 kN
Reference speed 1500 rpm
Limiting speed 2000 rpm
Mass 19 kg
d1 230mm
B 52mm
C 43mm
r1r2 min 5mm
r3r4 min 4mm
a 58mm
da max 203mm
db min 190mm
Da min 268mm
Da max 293mm
Db min 288mm
Ca min 8mm
Cb min 14mm
ra max 4mm
rb max 3mm
e 0.43
Y 1.4
Y0 0.8
