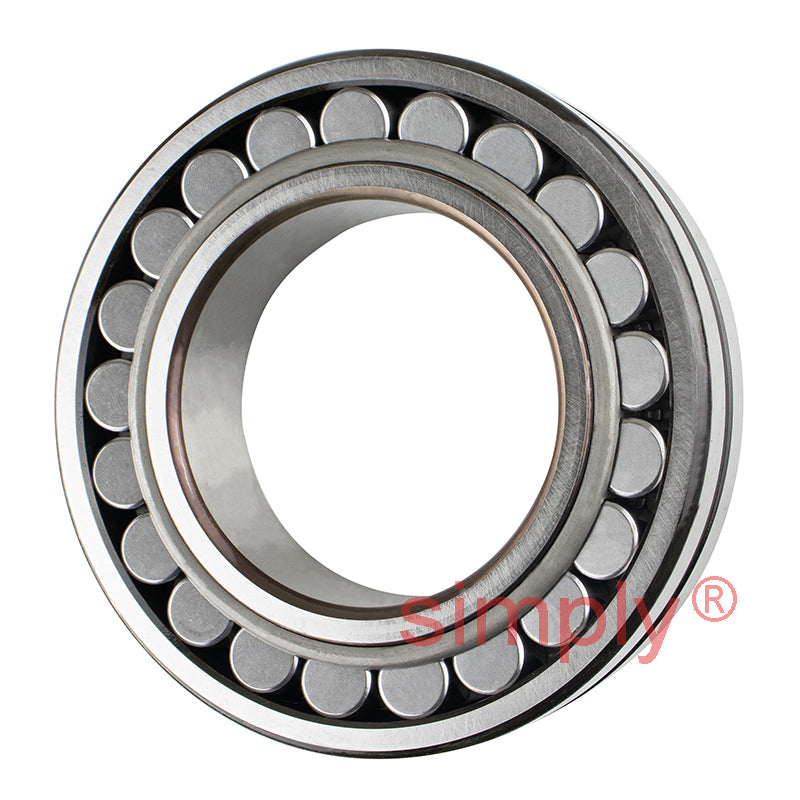

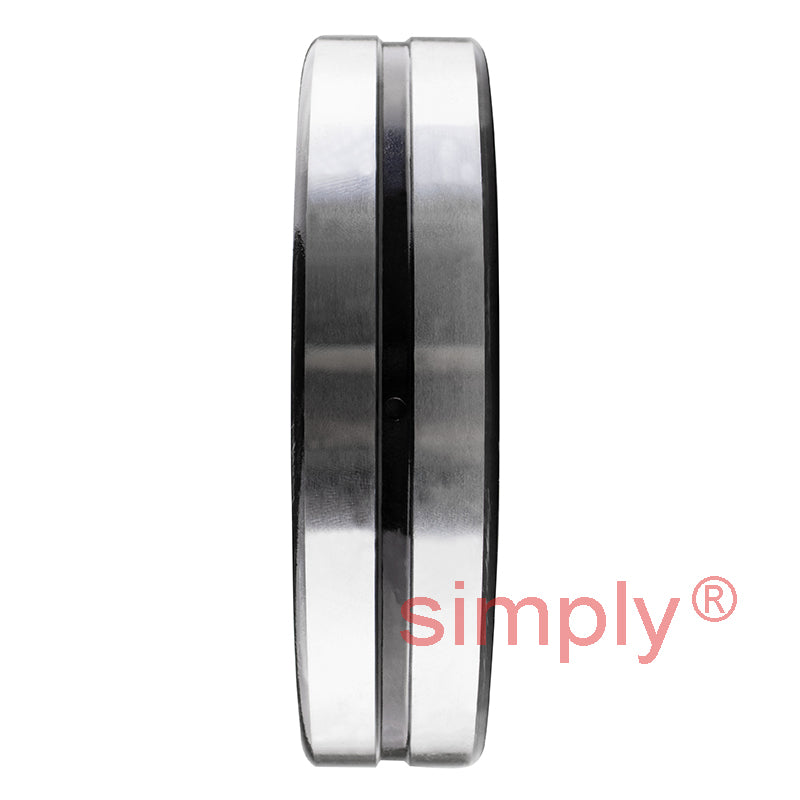

SKF 22216E Spherical Roller Bearing with Cylindrical Bore 80x140x33mm
SKF 22216E Spherical Roller Bearing with Cylindrical Bore 80x140x33mm
Regular price
£178.46
ex VAT£214.15inc. VAT
Regular price
Sale price
£178.46
ex VAT£214.15
inc. VAT
In stock
Price Break
3+
£158.83
4+
£149.91
9+
£148.12
19+
£146.34
29+
£144.55
39+
£142.77
49+
£133.85
59+
£132.06
249+
£130.28
499+
£128.49
999+
£124.92
Share this product
Description
Description
|
SKF Spherical Roller Bearings: These bearings have two rows of barrel shaped (spherical) rollers which run on a common spherical outer and inner raceway, they are inclined at an angle to the bearings axis. Their design offers many features such as self alignment, insensitivity to misalignment, tolerance to heavy radial and axial loads etc. They are manufactured with in both parallel and tapered bore variants. Benefits: High radial and axial loads, misalignment, taper and parallel bore options |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 80mm
- Outside Diameter:
- 140mm
- Width:
- 33mm
- Clearance:
- * Standard
Technical
Technical
| --- | Dimensions |
|---|---|
| d | 80mm |
| D | 140mm |
| B | 33mm |
| D1 | 124mm |
| d2 | 94.7mm |
| r1r2 min | 2mm |
| b | 5.5mm |
| K | 3mm |
| da min | 91mm |
| Da max | 129mm |
| ra max | 2mm |
| --- | Speeds, Loads and Weights |
| Dynamic load C | 236 kN |
| Static load Co | 270 kN |
| Fatigue load limit Pu | 29 kN |
| Reference speed | 4300 rpm |
| Limiting speed | 6000 rpm |
| Weight | 2.1 kg |
| --- | Factors |
| Calculation factor e | 0.22 |
| Calculation factor Y1 | 3 |
| Calculation factor Y2 | 4.6 |
| Calculation factor Y0 | 2.8 |
