SKU: 21308-E1-FAG
FAG 21308E1 X-life Spherical Roller Bearing with Cylindrical Bore 40x90x23mm
FAG 21308E1 X-life Spherical Roller Bearing with Cylindrical Bore 40x90x23mm
Regular price
£69.86
ex VAT£83.83inc. VAT
Regular price
Sale price
£69.86
ex VAT£83.83
inc. VAT
In stock
Price Break
3+
£62.18
4+
£58.68
9+
£57.98
19+
£57.29
29+
£56.59
39+
£55.89
49+
£52.40
59+
£51.70
249+
£51.00
499+
£50.30
999+
£48.90
Description
Description
|
Spherical Roller Bearings: These bearings have two rows of barrel shaped (spherical) rollers which run on a common spherical outer and inner raceway, they are inclined at an angle to the bearings axis. Their design offers many features such as self alignment, insensitivity to misalignment, tolerance to heavy radial and axial loads etc. They are manufactured with in both parallel and tapered bore variants. Benefits: High radial and axial loads, misalignment, taper and parallel bore options |
- Brand / Quality:
- FAG - High Quality
- Inside Diameter:
- 40mm
- Outside Diameter:
- 90mm
- Width:
- 23mm
- Seals / Shields:
- None
- Clearance:
- * Standard
Technical
Technical

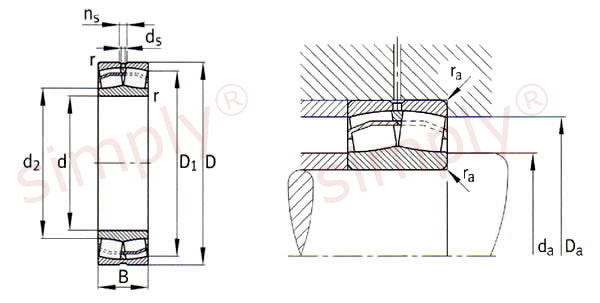

| --- | Dimensions |
|---|---|
| d | 40mm |
| D | 90mm |
| B | 23mm |
| r min. | 1.5mm |
| D1 | 80.8mm |
| d2 | 59.7mm |
| ds | 3.2mm |
| ns | 4.8mm |
| da min. | 49mm |
| Da max. | 81mm |
| ra max. | 1.5mm |
| --- | Loads, Speeds and Weights |
| Fatigue limit load | 14300 N |
| Limiting speed | 9500 rpm |
| Reference speed | 5200 rpm |
| Dynamic Load Rating | 109000 N |
| Static Load Rating | 107000 N |
| Weight | 0.701kg |
| --- | Factors |
| e | 0.24 |
| Y1 | 2.81 |
| Y2 | 4.19 |
| Y0 | 2.75 |
