SKU: 20B-1-SNX-NO26-RENOLD
Renold SYNO 20B-1-NO26 BS Simplex Chain Connecting Link With Spring Clip 1-1/4 inch Pitch
Renold SYNO 20B-1-NO26 BS Simplex Chain Connecting Link With Spring Clip 1-1/4 inch Pitch
Regular price
£57.87
ex VAT£69.44inc. VAT
Regular price
Sale price
£57.87
ex VAT£69.44
inc. VAT
In stock
Price Break
10+
£51.50
19+
£48.61
29+
£48.03
39+
£47.45
49+
£46.87
74+
£46.30
99+
£43.40
199+
£42.82
249+
£42.25
499+
£41.67
999+
£40.51
Couldn't load pickup availability
Description
Description

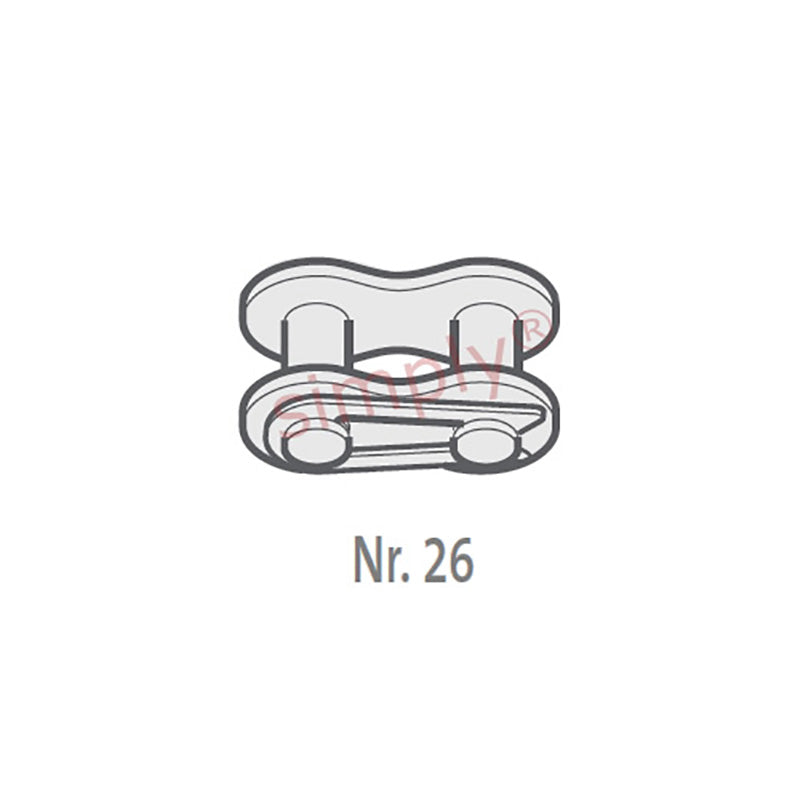

| Renold No. 26 European (BS) Simplex Connecting Link: Used on short pitch chains only. Supplied with two connecting pins riveted into the outer plate, the clearance fit connecting plate being secured by means of a spring clip, No. 27, which snaps into the grooves in the pins. |
- Brand / Quality:
- Renold - High Quality
- Pitch:
- 31.75mm = 1.25 (1-1/4) inch
Technical
Technical
| Pitch (A) | 1.25 inch |
|---|---|
| Pitch (A) | 31.75mm |
| Inside Width min (B) | 19.56mm |
| Roller Diameter max (C) | 19.05mm |
| Plate Height max (D) | 26.42mm |
| Plate Width Inner max (E) | 4.62mm |
| Plate Width Outer max (F) | 3.61mm |
| Pin Diameter max (G) | 10.19mm |
| Pin Length max (H1) | 39.8mm |
| Connecting Link Extension max (J) | 2.7mm |
| ISO606 Tensile Strength min | 95000 N |
| Weight | 0.04kg/m |
