SKU: 203KR2-PEER
PEER 203KR2 Seeder Bearing 0.625x1.5748x0.551 inch
PEER 203KR2 Seeder Bearing 0.625x1.5748x0.551 inch
Regular price
£6.62
ex VAT£7.94inc. VAT
Regular price
Sale price
£6.62
ex VAT£7.94
inc. VAT
Equivalent to: 203KR2
In stock
Price Break
5+
£6.55
10+
£6.29
20+
£6.16
50+
£5.96
100+
£5.83
500+
£5.49
1000+
£4.63
Couldn't load pickup availability
Description
Description
Seal Type: R, RST
Typical Application: Lawn and Garden Applications
Typical Environment: Less Contaminative Environment
Contamination Exclusion: Mild/Moderate
Speed Limit: Basic BRG. Size < 205: 3500 RPM, Basic BRG. Size > 205: 2000 RPM
Equivalent: 203KR2
- Brand / Quality:
- PEER - High Quality
- Inside Diameter:
- 15.88mm = 0.625 (5/8) inch
- Outside Diameter:
- 39.99mm = 1.574 inch
- Width:
- 13.99mm = 0.551 inch
Technical
Technical

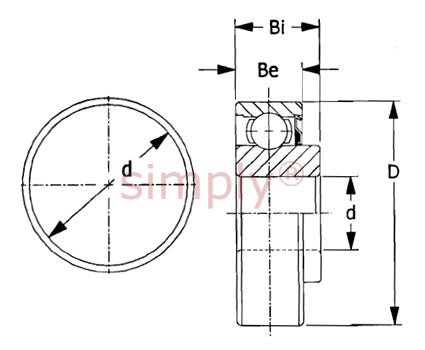

| d | 0.625 inch = 15.88mm (Tolerance +.0000 to minus 0.0003) |
|---|---|
| D | 1.5748 inch = 39.99992mm (Tolerance +.0000 to minus 0.0005) |
| Bi | 0.551 inch = 13.9954mm (Tolerance +.0000 to minus 0.005) |
| Be | 0.4724 inch = 11.99896mm (Tolerance +.0000 to minus 0.005) |
| Seal/Shield Type | R Seal |
| Load Ratings Dynamic | 2160 lbf |
| Load Ratings Static | 889 lbf |
