SKU: 16B-3-SYN-NO26-RENOLD

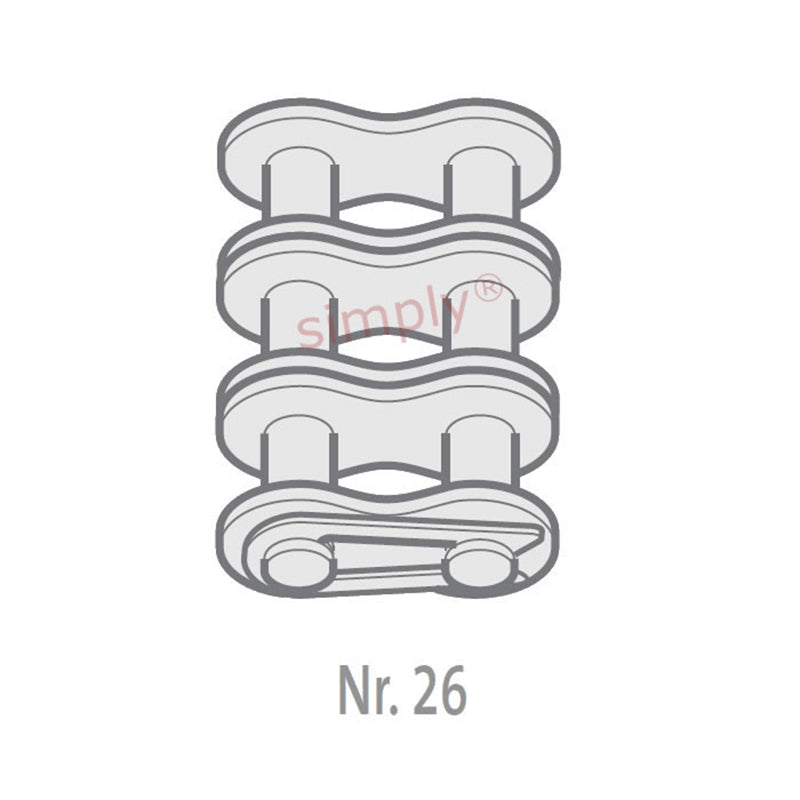

Renold Synergy 16B-3-NO26 BS Triplex Chain Connecting Link With Spring Clip 1 inch Pitch
Renold Synergy 16B-3-NO26 BS Triplex Chain Connecting Link With Spring Clip 1 inch Pitch
Regular price
£76.88
ex VAT£92.26inc. VAT
Regular price
Sale price
£76.88
ex VAT£92.26
inc. VAT
In stock
Price Break
10+
£68.42
19+
£64.58
29+
£63.81
39+
£63.04
49+
£62.27
74+
£61.50
99+
£57.66
199+
£56.89
249+
£56.12
499+
£55.35
999+
£53.82
Couldn't load pickup availability
Description
Description
| Renold No. 26 European (BS) Triplex Connecting Link: Used on short pitch chains only. Supplied with two connecting pins riveted into the outer plate, the clearance fit connecting plate being secured by means of a spring clip, No. 27, which snaps into the grooves in the pins. |
- Brand / Quality:
- Renold - High Quality
- Pitch:
- 25.4mm = 1 inch
Technical
Technical
| Pitch (A) | 1 inch |
|---|---|
| Pitch (A) | 25.4mm |
| Inside Width min (B) | 17.02mm |
| Roller Diameter max (C) | 15.88mm |
| Plate Height max (D) | 21.08mm |
| Plate Width Inner max (E) | 4.12mm |
| Plate Width Outer max (F) | 3.1mm |
| Pin Diameter max (G) | 8.28mm |
| Pin Length max (H2) | 98.6mm |
| Connecting Link Extension max (J) | 2.2mm |
| Transverse Pitch nom (K) | 31.88mm |
| ISO606 Tensile Strength min | 160000 N |
| Weight | 0.046kg/m |
