SKU: 16B-3-SYN-NO11-RENOLD
Renold Synergy 16B-3-NO11 BS Triplex Chain Cottered Connecting Link 1 inch Pitch
Renold Synergy 16B-3-NO11 BS Triplex Chain Cottered Connecting Link 1 inch Pitch
Regular price
£337.79
ex VAT£405.35inc. VAT
Regular price
Sale price
£337.79
ex VAT£405.35
inc. VAT
In stock
Price Break
10+
£300.63
19+
£283.74
29+
£280.37
39+
£276.99
49+
£273.61
74+
£270.23
99+
£253.34
199+
£249.96
249+
£246.59
499+
£243.21
999+
£236.45
Couldn't load pickup availability
Description
Description

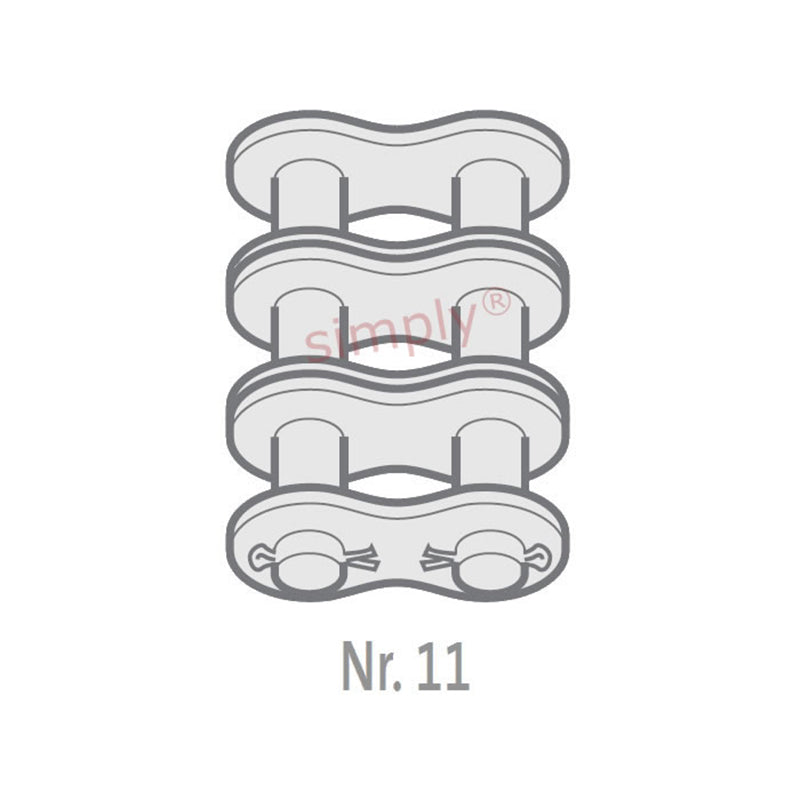

| Renold No. 11 European (BS) Triplex Connecting Link: A connecting link supplied with two connecting pins riveted into the outer plate. The outer plate is a clearance fit on the connecting pins and is secured in a position by a split pin through the projecting end of each connecting pin. |
- Brand / Quality:
- Renold - High Quality
- Pitch:
- 25.4mm = 1 inch
Technical
Technical
| Pitch (A) | 1 inch |
|---|---|
| Pitch (A) | 25.4mm |
| Inside Width min (B) | 17.02mm |
| Roller Diameter max (C) | 15.88mm |
| Plate Height max (D) | 21.08mm |
| Plate Width Inner max (E) | 4.12mm |
| Plate Width Outer max (F) | 3.1mm |
| Pin Diameter max (G) | 8.28mm |
| Pin Length max (H2) | 98.6mm |
| Connecting Link Extension max (J) | 2.2mm |
| Transverse Pitch nom (K) | 31.88mm |
| ISO606 Tensile Strength min | 160000 N |
| Weight | 0.046kg/m |
