SKU: 16B-3-SD-NO11-RENOLD
Renold SD 16B-3-NO11 BS Triplex Chain Cottered Connecting Link 1 inch Pitch
Renold SD 16B-3-NO11 BS Triplex Chain Cottered Connecting Link 1 inch Pitch
Regular price
£13.41
ex VAT£16.09inc. VAT
Regular price
Sale price
£13.41
ex VAT£16.09
inc. VAT
In stock
Price Break
2+
£11.93
5+
£11.26
10+
£11.13
29+
£11.00
49+
£10.86
75+
£10.73
100+
£10.06
200+
£9.92
250+
£9.79
500+
£9.65
1000+
£9.39
Description
Description

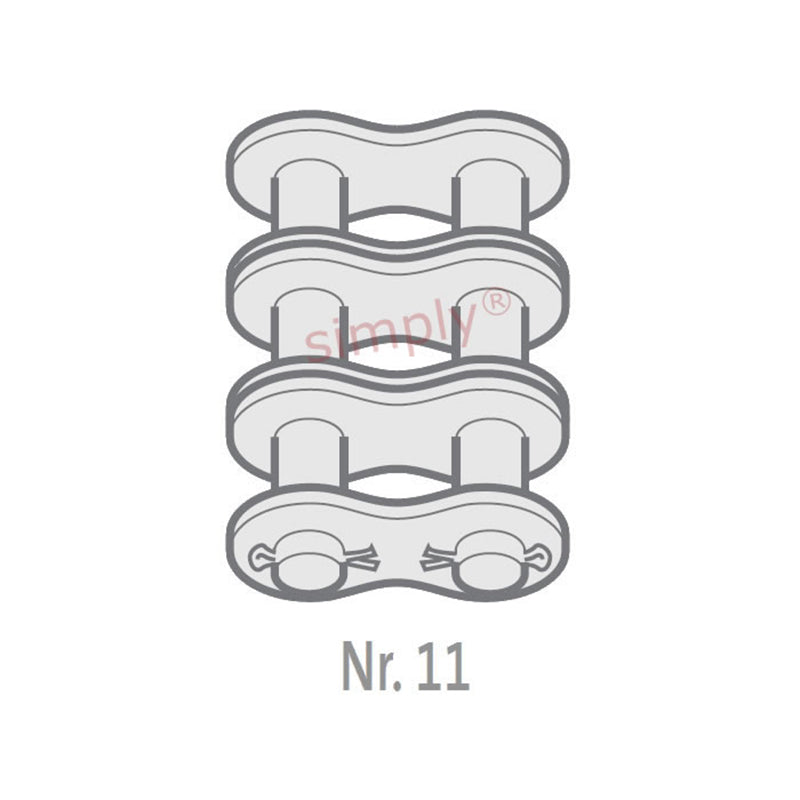

| Renold No. 11 European (BS) Triplex Connecting Link: A connecting link supplied with two connecting pins riveted into the outer plate. The outer plate is a clearance fit on the connecting pins and is secured in a position by a split pin through the projecting end of each connecting pin. |
- Brand / Quality:
- Renold - High Quality
- Pitch:
- 25.4mm = 1 inch
Technical
Technical
| Pitch (A) | 1 inch |
|---|---|
| Pitch (A) | 25.4mm |
| Inside Width min (B) | 17.02mm |
| Roller Diameter max (C) | 15.88mm |
| Plate Height max (D) | 21.05mm |
| Plate Width Inner max (E) | 4mm |
| Plate Width Outer max (F) | 3.2mm |
| Pin Diameter max (G) | 8.28mm |
| Pin Length max (H1) | 103.2mm |
| Connecting Link Extension max (J) | 3.60000000000001mm |
| ISO606 Tensile Strength min | 173000 N |
| Weight | 0.106kg/m |
