SKU: 16B-3-NO30-MB
Branded 16B-3-NO30 BS Triplex Chain Double Cranked Link 1 inch Pitch
Branded 16B-3-NO30 BS Triplex Chain Double Cranked Link 1 inch Pitch
Regular price
£15.10
ex VAT£18.12inc. VAT
Regular price
Sale price
£15.10
ex VAT£18.12
inc. VAT
Equivalent to: 16B-3-DOL
In stock
Price Break
2+
£13.44
5+
£12.68
10+
£12.53
29+
£12.38
49+
£12.23
75+
£12.08
100+
£11.32
200+
£11.17
250+
£11.02
500+
£10.87
1000+
£10.57
Description
Description

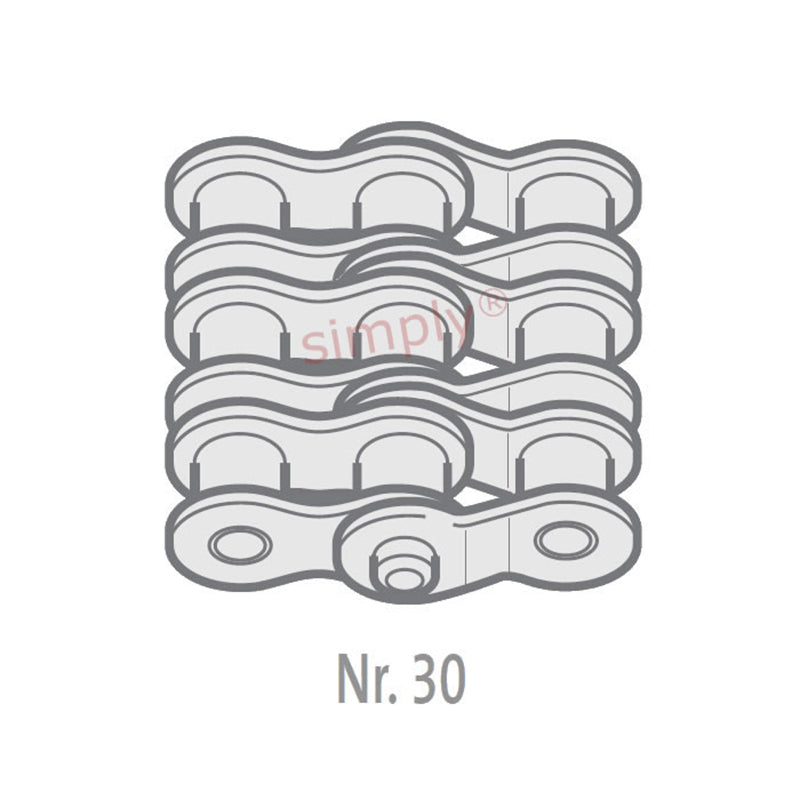

Branded DOL / No. 30 European (BS) Triplex Connecting Link: Double cranked links are available for most sizes and types of chain. The unit consists of an inner link (No. 4), with cranked links retained permanently in position by a riveted bearing pin.
Equivalent: 16B-3-DOL
- Brand / Quality:
- Major Brand - High Quality
- Pitch:
- 25.4mm = 1 inch
Technical
Technical
| Pitch (A) | 1 inch |
|---|---|
| Pitch (A) | 25.4mm |
| Inside Width min (B) | 17.02mm |
| Roller Diameter max (C) | 15.88mm |
| Plate Height max (D) | 21.05mm |
| Plate Width Inner max (E) | 4mm |
| Plate Width Outer max (F) | 3.2mm |
| Pin Diameter max (G) | 8.28mm |
| Pin Length max (H3) | 103.2mm |
| Connecting Link Extension max (J) | 3.60000000000001mm |
| ISO606 Tensile Strength min | 173000 N |
| Weight | 0.113kg/m |
