SKU: 16B-2-BB-NO12-RENOLD
Renold Blue Box 16B-2-NO12 BS Duplex Chain Single Cranked Cottered Link 1 inch Pitch
Renold Blue Box 16B-2-NO12 BS Duplex Chain Single Cranked Cottered Link 1 inch Pitch
Regular price
£44.96
ex VAT£53.95inc. VAT
Regular price
Sale price
£44.96
ex VAT£53.95
inc. VAT
In stock
Price Break
10+
£40.01
19+
£37.77
29+
£37.32
39+
£36.87
49+
£36.42
74+
£35.97
99+
£33.72
199+
£33.27
249+
£32.82
499+
£32.37
999+
£31.47
Couldn't load pickup availability
Description
Description

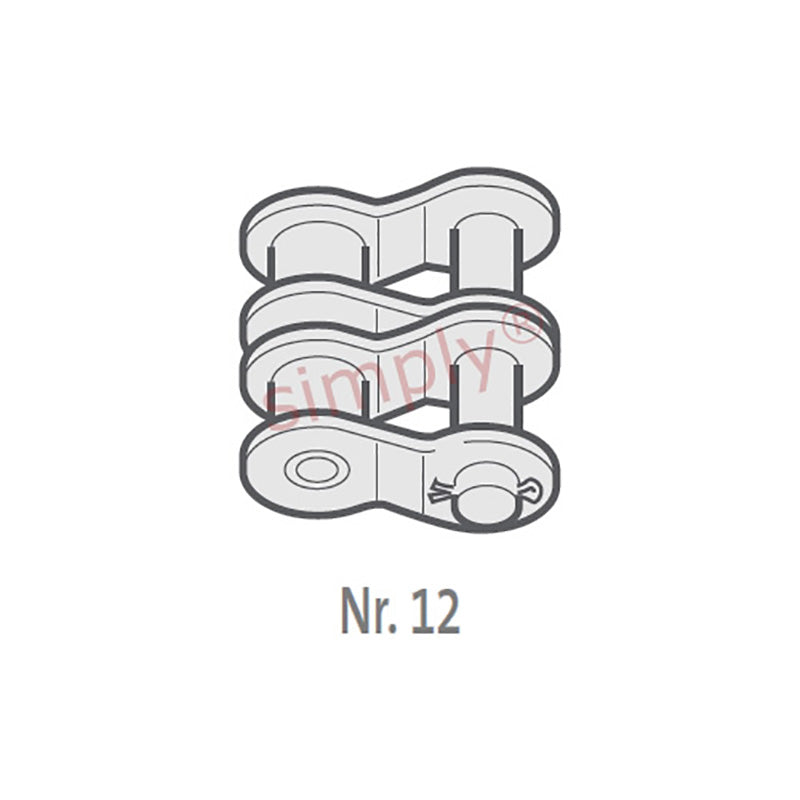

| Renold No. 12 European (BS) Duplex Connecting Link: A single link with cranked plates pressed onto a bush and roller assemble at the narrow end. A clearance fit connecting pin (No. 128) is fitted at the wide end and is secured by a split pin. |
- Brand / Quality:
- Renold - High Quality
- Pitch:
- 25.4mm = 1 inch
Technical
Technical
| Pitch (A) | 1 inch |
|---|---|
| Pitch (A) | 25.4mm |
| Inside Width min (B) | 17.02mm |
| Roller Diameter max (C) | 15.88mm |
| Plate Height max (D) | 21.08mm |
| Plate Width Inner max (E) | 3.76mm |
| Plate Width Outer max (F) | 3.1mm |
| Pin Diameter max (G) | 8.28mm |
| Pin Length max (H1) | 66.8mm |
| Connecting Link Extension max (J) | 2.2mm |
| ISO606 Tensile Strength min | 106000 N |
| Weight | 0.046kg/m |
