SKU: 16B-1-SD-NO26-RENOLD
Renold SD 16B-1-NO26 BS Simplex Chain Connecting Link With Spring Clip 1 inch Pitch
Renold SD 16B-1-NO26 BS Simplex Chain Connecting Link With Spring Clip 1 inch Pitch
Regular price
£6.52
ex VAT£7.82inc. VAT
Regular price
Sale price
£6.52
ex VAT£7.82
inc. VAT
In stock
Price Break
10+
£5.80
19+
£5.48
29+
£5.41
39+
£5.35
49+
£5.28
74+
£5.22
99+
£4.89
199+
£4.82
249+
£4.76
499+
£4.69
999+
£4.56
Couldn't load pickup availability
Description
Description

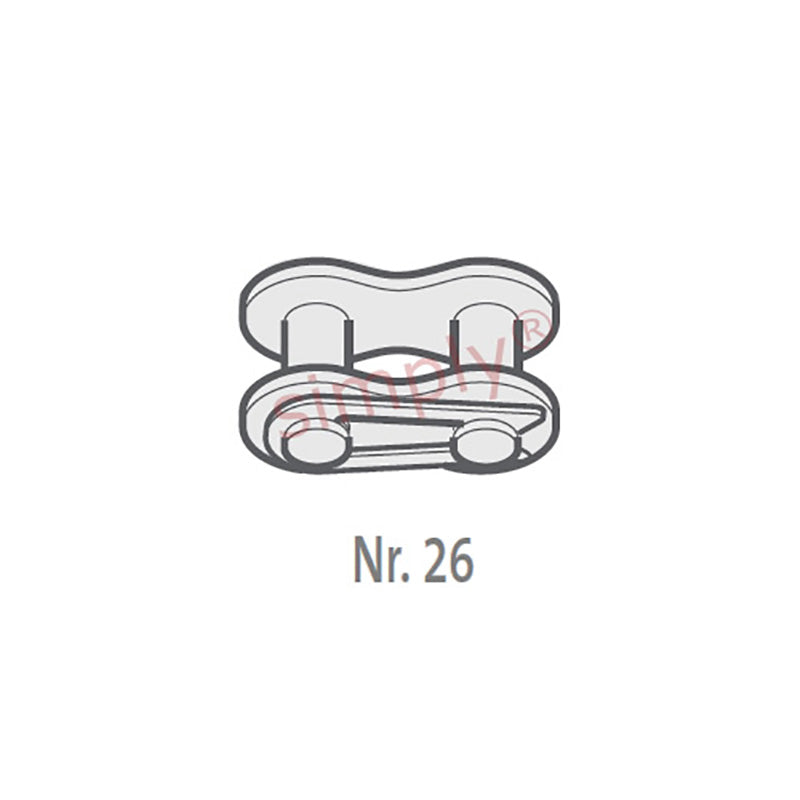

| Renold No. 26 European (BS) Simplex Connecting Link: Used on short pitch chains only. Supplied with two connecting pins riveted into the outer plate, the clearance fit connecting plate being secured by means of a spring clip, No. 27, which snaps into the grooves in the pins. |
- Brand / Quality:
- Renold - High Quality
- Pitch:
- 25.4mm = 1 inch
Technical
Technical
| Pitch (A) | 1 inch |
|---|---|
| Pitch (A) | 25.4mm |
| Inside Width min (B) | 17.02mm |
| Roller Diameter max (C) | 15.88mm |
| Plate Height max (D) | 21.05mm |
| Plate Width Inner max (E) | 4mm |
| Plate Width Outer max (F) | 3.2mm |
| Pin Diameter max (G) | 8.28mm |
| Pin Length max (H1) | 36mm |
| Connecting Link Extension max (J) | 1.2mm |
| ISO606 Tensile Strength min | 60000 N |
| Weight | 0.008kg/m |
