SKU: 1630-ZZ-MB

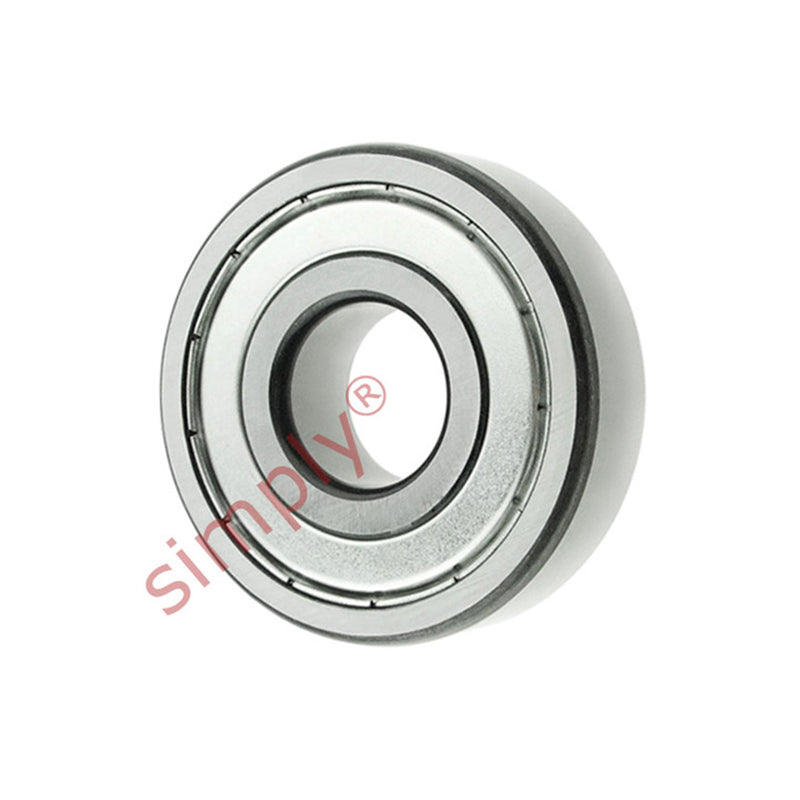

Major Brand 1630ZZ Metal Shielded Deep Groove Ball Bearing 0.75x1.625x0.5 inch
Major Brand 1630ZZ Metal Shielded Deep Groove Ball Bearing 0.75x1.625x0.5 inch
Regular price
£6.28
ex VAT£7.54inc. VAT
Regular price
Sale price
£6.28
ex VAT£7.54
inc. VAT
Equivalent to: 1630-ZZ 16302Z 1630Z
In stock
Price Break
5+
£5.59
9+
£5.27
19+
£5.21
29+
£5.15
49+
£5.09
74+
£5.02
99+
£4.71
199+
£4.65
249+
£4.58
499+
£4.52
999+
£4.40
Description
Description
Metal Shielded Deep Groove Ball Bearings: One of the most commonly used bearings, these types are manufactured with metal shields inserted into the outer raceway, these fit in closely to the inner race providing protection against light mechanical damage, some protection against the ingress of moisture, dust and other foreign matter and serve to retain the pre-filled grease in the bearing.
Shields can be removed for applications that don't require a shield or only require 1 shield.
Benefits: Provides light mechanical protection, limits moisture and dirt ingress, lubricated for life, cost-effective solution.
Equivalent: 1630-ZZ 16302Z 1630Z
- Brand / Quality:
- PEER - High Quality
- Inside Diameter:
- 19.05mm = 0.75 (3/4) inch
- Outside Diameter:
- 41.28mm = 1.625 (1-5/8) inch
- Width:
- 12.7mm = 0.5 (1/2) inch
- Seals / Shields:
- Metal Shielded
- Clearance:
- * Standard
Technical
Technical
| Bore (d) | 0.75 inch = 19.05mm (Tolerance +.0000 to minus 0.0005) |
|---|---|
| Outside Diameter (D) | 1.625 inch = 41.275mm (Tolerance +.0000 to minus 0.0005) |
| Width (B) | 0.5 inch = 12.7mm (Tolerance +.0000 to minus 0.005) |
| Maximum (r) | 0.025 inch |
| Load Ratings Dynamic | 2320 lbf |
| Load Ratings Static | 1117 lbf |
