SKU: 16060MA-SKF

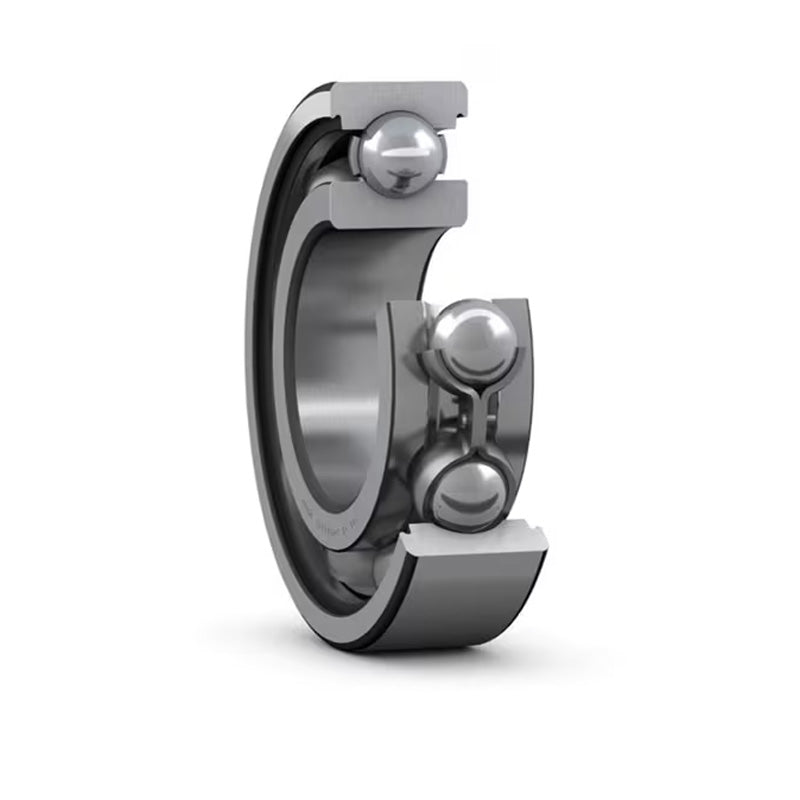

SKF 16060MA Open Deep Groove Ball Bearing 300x460x50mm
SKF 16060MA Open Deep Groove Ball Bearing 300x460x50mm
Regular price
£5,608.38
ex VAT£6,730.06inc. VAT
Regular price
Sale price
£5,608.38
ex VAT£6,730.06
inc. VAT
In stock
Price Break
4+
£4,991.46
10+
£4,711.04
20+
£4,654.96
30+
£4,598.87
50+
£4,542.79
75+
£4,486.70
100+
£4,206.29
200+
£4,150.20
250+
£4,094.12
500+
£4,038.03
1000+
£3,925.87
Description
Description
|
Open Deep Groove Ball Bearings: One of the most commonly used bearings, the open types are manufactured without seals to allow for the free circulation of either oil or grease, used in gearboxes and other environments where no foreign matter would be present and a lubricant supply is available. |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 300mm
- Outside Diameter:
- 460mm
- Width:
- 50mm
- Seals / Shields:
- None
- Clearance:
- * Standard
Technical
Technical
| d | 300mm |
|---|---|
| D | 460mm |
| B | 50mm |
| Dynamic load | 286 kN |
| Static load | 405 kN |
| Fatigue load limit Pu | 8.8 kN |
| Reference speed | 2 800 rpm |
| Limiting speed | 2 400 rpm |
| Weight | 32 kg |
| d1 | 352mm |
| D1 | 408mm |
| D2 | 4mm |
| r1r2 min | 315mm |
| da min | 445mm |
| Da max | 3mm |
| ra max | 0.02mm |
| Calculation factor kr | 16 |
| Calculation factor Cor | N/A |
