SKU: 1606-ZZ-MB

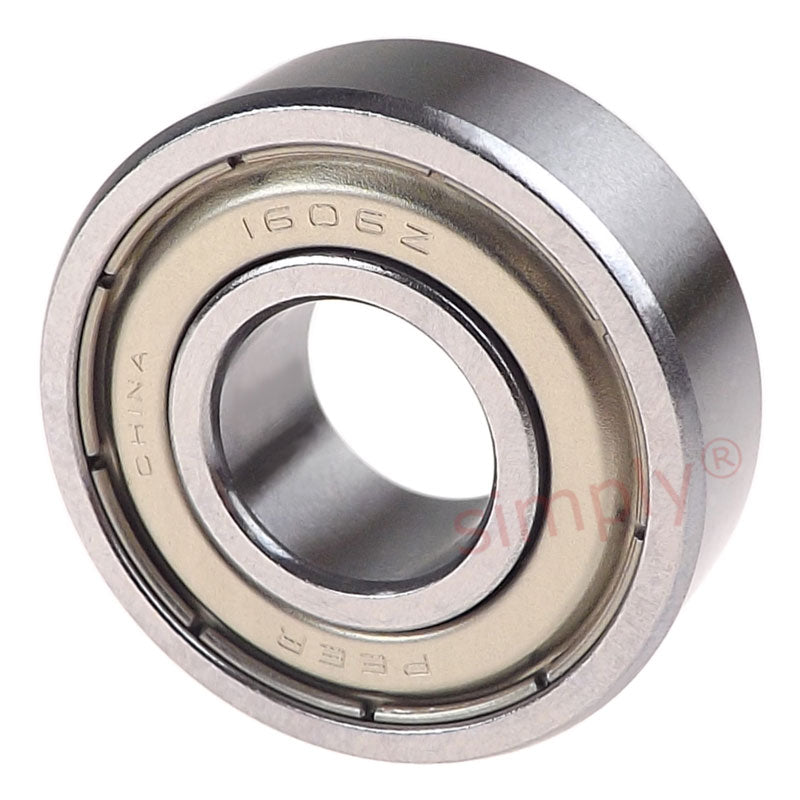

Major Brand 1606ZZ Metal Shielded Deep Groove Ball Bearing 0.375x0.9062x0.3125 inch
Major Brand 1606ZZ Metal Shielded Deep Groove Ball Bearing 0.375x0.9062x0.3125 inch
Regular price
£4.64
ex VAT£5.57inc. VAT
Regular price
Sale price
£4.64
ex VAT£5.57
inc. VAT
Equivalent to: 1606-ZZ 16062Z 1606Z
In stock
Price Break
5+
£4.13
9+
£3.89
19+
£3.85
29+
£3.80
49+
£3.76
74+
£3.71
99+
£3.48
199+
£3.43
249+
£3.38
499+
£3.34
999+
£3.25
Description
Description
Metal Shielded Deep Groove Ball Bearings: One of the most commonly used bearings, these types are manufactured with metal shields inserted into the outer raceway, these fit in closely to the inner race providing protection against light mechanical damage, some protection against the ingress of moisture, dust and other foreign matter and serve to retain the pre-filled grease in the bearing.
Shields can be removed for applications that don't require a shield or only require 1 shield.
Benefits: Provides light mechanical protection, limits moisture and dirt ingress, lubricated for life, cost-effective solution.
Equivalent: 1606-ZZ 16062Z 1606Z
- Brand / Quality:
- PEER - High Quality
- Inside Diameter:
- 9.53mm = 0.375 (3/8) inch
- Outside Diameter:
- 23.02mm = 0.906 (29/32) inch
- Width:
- 7.93mm = 0.312 (5/16) inch
- Seals / Shields:
- Metal Shielded
- Clearance:
- * Standard
Technical
Technical
| Bore (d) | 0.375 inch = 9.525mm (Tolerance +.0000 to minus 0.0005) |
|---|---|
| Outside Diameter (D) | 0.9062 inch = 23.01748mm (Tolerance +.0000 to minus 0.0005) |
| Width (B) | 0.3125 inch = 7.9375mm (Tolerance +.0000 to minus 0.005) |
| Maximum (r) | 0.015 inch |
| Load Ratings Dynamic | 832 lbf |
| Load Ratings Static | 326 lbf |
