SKU: 16034-SKF

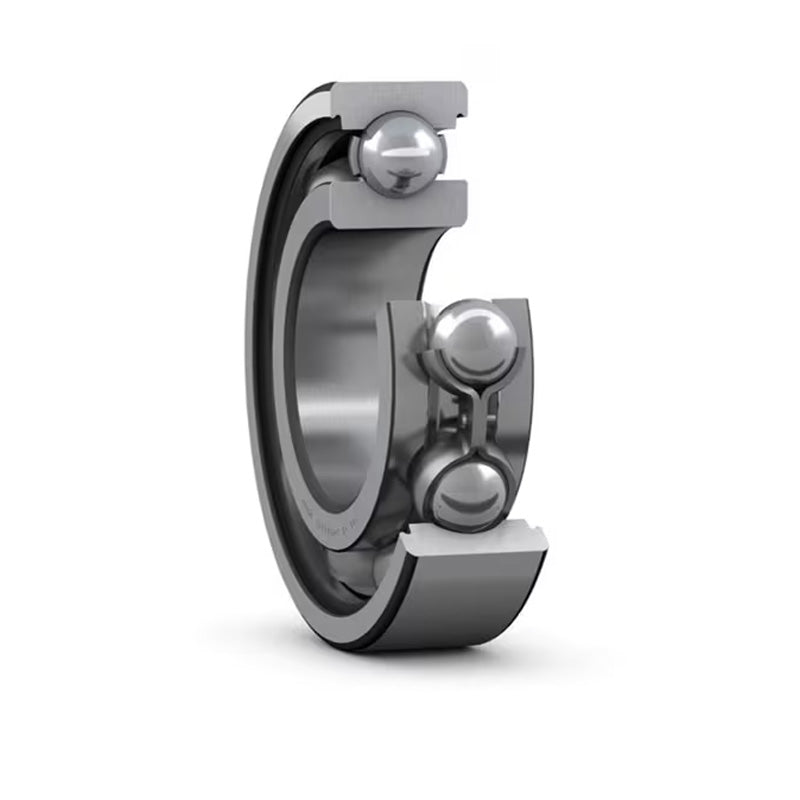

SKF 16034 Open Deep Groove Ball Bearing 170x260x28mm
SKF 16034 Open Deep Groove Ball Bearing 170x260x28mm
Regular price
£657.58
ex VAT£789.10inc. VAT
Regular price
Sale price
£657.58
ex VAT£789.10
inc. VAT
Equivalent to: ELN170 ELLN170
In stock
Price Break
4+
£585.25
10+
£552.37
20+
£545.79
30+
£539.22
50+
£532.64
75+
£526.06
100+
£493.19
200+
£486.61
250+
£480.03
500+
£473.46
1000+
£460.31
Description
Description
|
Open Deep Groove Ball Bearings: One of the most commonly used bearings, the open types are manufactured without seals to allow for the free circulation of either oil or grease, used in gearboxes and other environments where no foreign matter would be present and a lubricant supply is available. |
Equivalent: ELN170 ELLN170
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 170mm
- Outside Diameter:
- 260mm
- Width:
- 28mm
- Seals / Shields:
- None
- Clearance:
- * Standard
Technical
Technical
| d | 170mm |
|---|---|
| D | 260mm |
| B | 28mm |
| Dynamic load | 119 kN |
| Static load | 129 kN |
| Fatigue load limit Pu | 3.75 kN |
| Reference speed | 5300 rpm |
| Limiting speed | 3200 rpm |
| Weight | 5 kg |
| d1 | 200mm |
| D1 | 229mm |
| D2 | n/amm |
| r1r2 min | 1.5mm |
| da min | 177mm |
| Da max | 253mm |
| ra max | 1.5mm |
| Calculation factor kr | 0.02 |
| Calculation factor Cor | 16 |
