SKU: 1603-2RS-MB

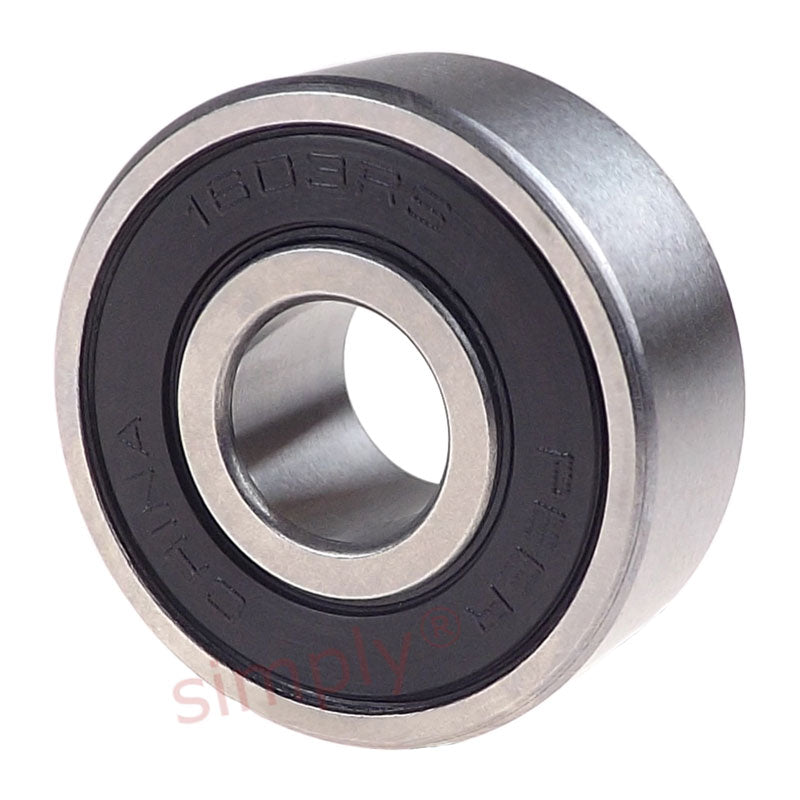

Major Brand 16032RS Rubber Sealed Deep Groove Ball Bearing 0.3125x0.875x0.34375 inch
Major Brand 16032RS Rubber Sealed Deep Groove Ball Bearing 0.3125x0.875x0.34375 inch
Regular price
£4.50
ex VAT£5.40inc. VAT
Regular price
Sale price
£4.50
ex VAT£5.40
inc. VAT
Equivalent to: 1603-2RS 1603RS 1603-2RLD
In stock
Price Break
5+
£4.00
9+
£3.78
19+
£3.73
29+
£3.69
49+
£3.64
74+
£3.60
99+
£3.37
199+
£3.33
249+
£3.28
499+
£3.24
999+
£3.15
Description
Description
Rubber Sealed Deep Groove Ball Bearings: One of the most commonly used bearings, these types are manufactured with rubber seals inserted into the outer raceway and in contact with the inner race providing protection against the ingress of moisture, dust and other foreign matter and serve to retain the pre-filled grease in the bearing
Seals can be easily removed for applications that only require 1 seal.
Benefits: Prevents moisture and dirt getting into the bearing, lubricated for life
Equivalent: 1603-2RS 1603RS 1603-2RLD
- Brand / Quality:
- PEER - High Quality
- Inside Diameter:
- 7.93mm = 0.312 (5/16) inch
- Outside Diameter:
- 22.23mm = 0.875 (7/8) inch
- Width:
- 8.73mm = 0.344 (11/32) inch
- Seals / Shields:
- Rubber Sealed
- Clearance:
- * Standard
Technical
Technical
| Bore (d) | 0.3125 inch = 7.9375mm (Tolerance +.0000 to minus 0.0005) |
|---|---|
| Outside Diameter (D) | 0.875 inch = 22.225mm (Tolerance +.0000 to minus 0.0005) |
| Width (B) | 0.34375 inch = 8.73125mm (Tolerance +.0000 to minus 0.005) |
| Maximum (r) | 0.012 inch |
| Load Ratings Dynamic | 825 lbf |
| Load Ratings Static | 317 lbf |
