SKU: 16011-NTN

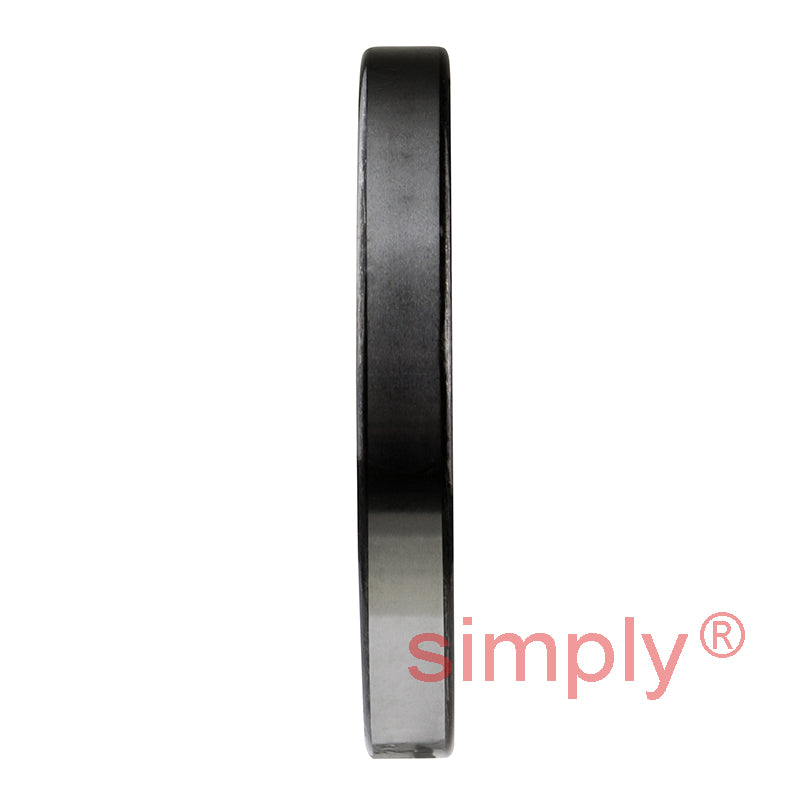

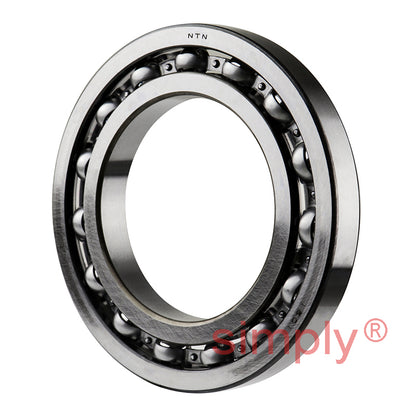

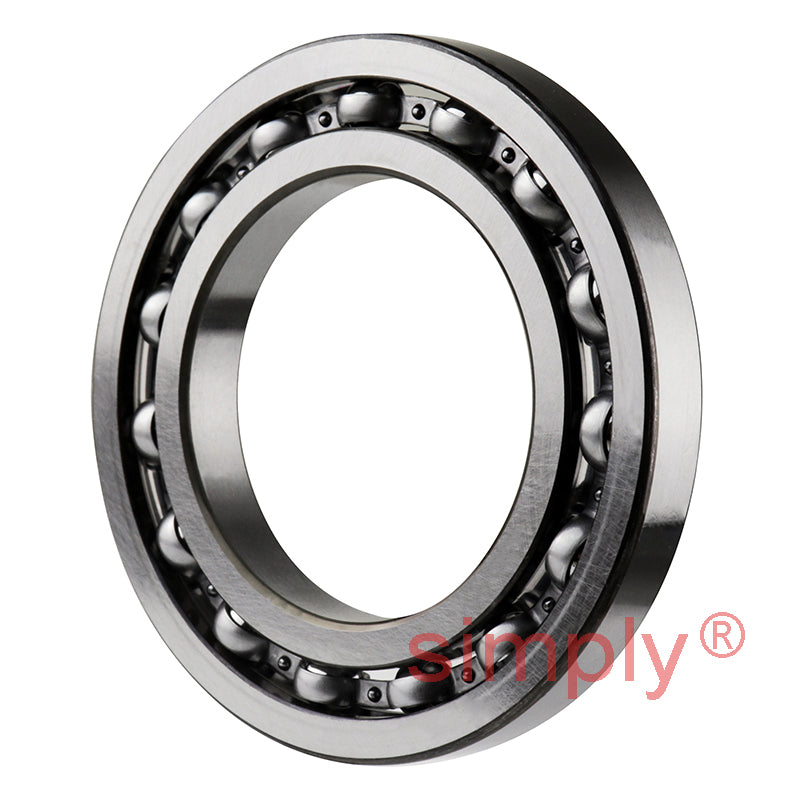

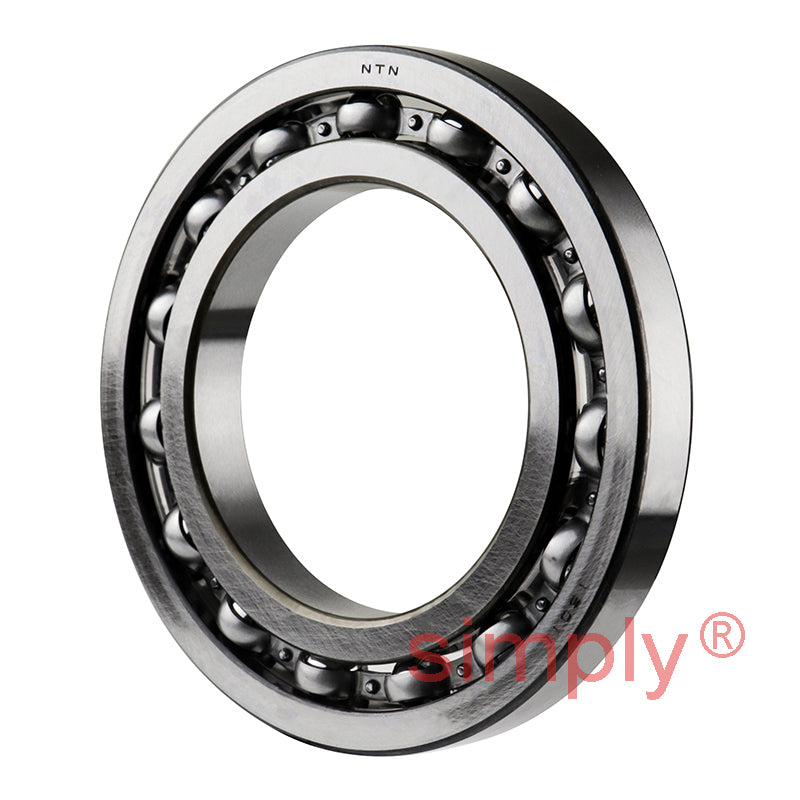

NTN 16011 Open Type Deep Groove Ball Bearing 55x90x11mm
NTN 16011 Open Type Deep Groove Ball Bearing 55x90x11mm
Regular price
£22.83
ex VAT£27.40inc. VAT
Regular price
Sale price
£22.83
ex VAT£27.40
inc. VAT
Equivalent to: 16011CM ELN55 ELLN55
In stock
Price Break
3+
£20.32
5+
£19.18
10+
£18.95
25+
£18.72
49+
£18.49
74+
£18.26
99+
£17.12
199+
£16.89
249+
£16.67
499+
£16.44
999+
£15.98
Description
Description
Open Deep Groove Ball Bearings: One of the most commonly used bearings, the open types are manufactured without seals to allow for the free circulation of either oil or grease, used in gearboxes and other environments where no foreign matter would be present and a lubricant supply is available.
Benefits: Used widely in transmissions etc, can be used in oil or greased, cost-effective solution.
Equivalent: 16011CM ELN55 ELLN55
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 55mm
- Outside Diameter:
- 90mm
- Width:
- 11mm
- Seals / Shields:
- None
- Clearance:
- * Standard
Technical
Technical
| --- | Bearing dimensions |
|---|---|
| d | 55mm |
| D | 90mm |
| B | 11mm |
| r<sub>s</sub> min | 0.6mm |
| --- | Loads angles and speeds |
| C<sub>r</sub> | 20.6 kN |
| C<sub>or</sub> | 15.3 kN |
| C<sub>u</sub> | 1.06 kN |
| f<sub>0</sub> | 16.2 kN |
| Grease | 7700 rpm |
| Oil | 9000 rpm |
| --- | Fitting Dimensions |
| d<sub>a</sub> Min. | 59mm |
| D<sub>a</sub> Max. | 86mm |
| r<sub>as</sub> Max. | 0.6mm |
| Weight | 0.258 kg |
