SKU: 160-3-NO11-DUN
Branded 160-3-NO11 ANSI / AS Triplex Chain Cottered Connecting Link 2 inch Pitch
Branded 160-3-NO11 ANSI / AS Triplex Chain Cottered Connecting Link 2 inch Pitch
Regular price
£42.40
ex VAT£50.88inc. VAT
Regular price
Sale price
£42.40
ex VAT£50.88
inc. VAT
Equivalent to: 160-3-CL-COT 160-3-CL
In stock
Price Break
10+
£37.74
19+
£35.62
29+
£35.19
39+
£34.77
49+
£34.34
74+
£33.92
99+
£31.80
199+
£31.38
249+
£30.95
499+
£30.53
999+
£29.68
Couldn't load pickup availability
Description
Description

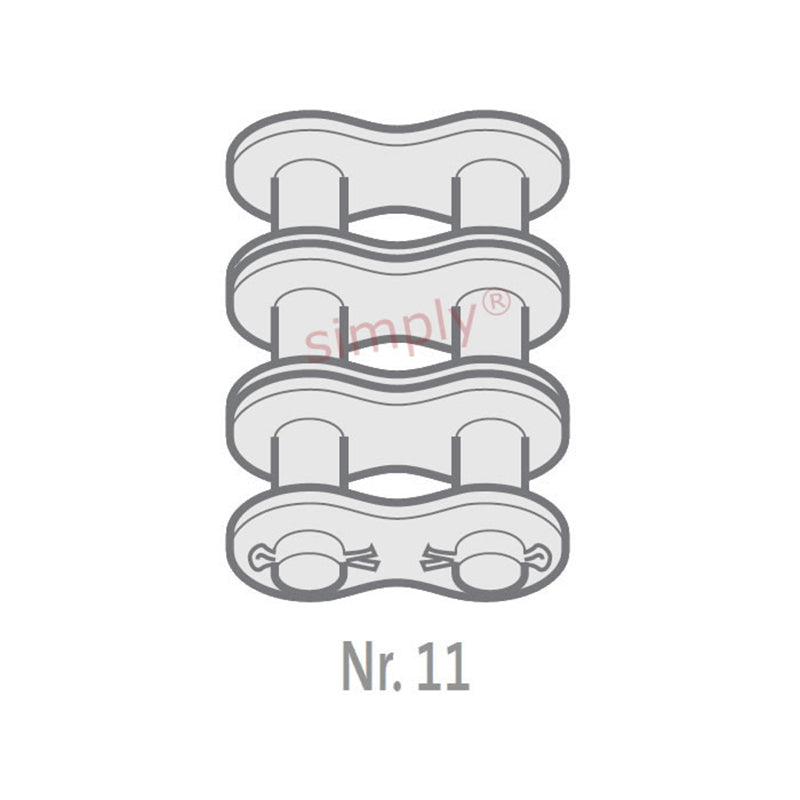

Branded COT / No. 11 ANSI Triplex Connecting Link: A connecting link supplied with two connecting pins riveted into the outer plate. The outer plate is a clearance fit on the connecting pins and is secured in a position by a split pin through the projecting end of each connecting pin.
Equivalent: 160-3-CL-COT 160-3-CL
- Brand / Quality:
- Branded - Good Quality
- Pitch:
- 50.8mm = 2 inch
Technical
Technical
| Pitch (A) | 2 inch |
|---|---|
| Pitch (A) | 50.8mm |
| Inside Width min (B) | 31.55mm |
| Roller Diameter max (C) | 28.58mm |
| Plate Height max (D) | 48mm |
| Plate Width Inner max (E) | 6.4mm |
| Plate Width Outer max (F) | 6.4mm |
| Pin Diameter max (G) | 14.2mm |
| Pin Length max (H1) | 170.5mm |
| Connecting Link Extension max (J) | 16.8mm |
| ISO606 Tensile Strength min | 669000 N |
| Weight | 58.55kg/m |
