Renold SD 160-2-NO11 ANSI / AS Duplex Chain Cottered Connecting Link 2 inch Pitch
Renold SD 160-2-NO11 ANSI / AS Duplex Chain Cottered Connecting Link 2 inch Pitch
Regular price
£72.94
ex VAT£87.53inc. VAT
Regular price
Sale price
£72.94
ex VAT£87.53
inc. VAT
In stock
Price Break
10+
£64.92
19+
£61.27
29+
£60.54
39+
£59.81
49+
£59.08
74+
£58.35
99+
£54.71
199+
£53.98
249+
£53.25
499+
£52.52
999+
£51.06
Couldn't load pickup availability
Description
Description

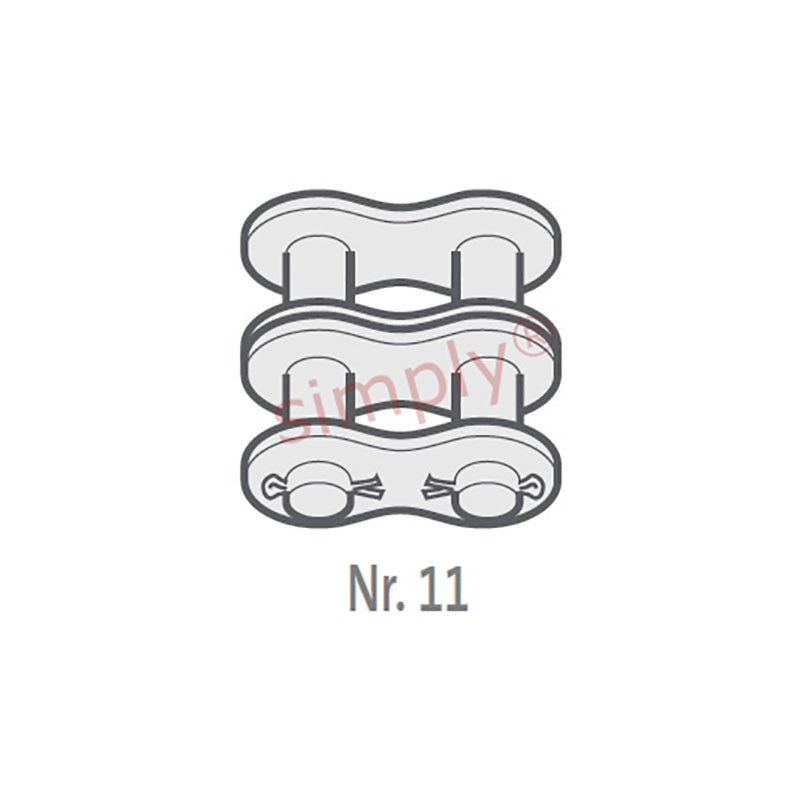

| Renold No. 11 ANSI Duplex Connecting Link: A connecting link supplied with two connecting pins riveted into the outer plate. The outer plate is a clearance fit on the connecting pins and is secured in a position by a split pin through the projecting end of each connecting pin. |
- Brand / Quality:
- Renold - High Quality
- Pitch:
- 50.8mm = 2 inch
Technical
Technical
| Pitch (A) | 2 inch |
|---|---|
| Pitch (A) | 50.8mm |
| Inside Width min (B) | 31.55mm |
| Roller Diameter max (C) | 28.58mm |
| Plate Height max (D) | 48mm |
| Plate Width Inner max (E) | 6.4mm |
| Plate Width Outer max (F) | 6.4mm |
| Pin Diameter max (G) | 14.27mm |
| Pin Length max (H2) | 122.9mm |
| Connecting Link Extension max (J) | 5.19999999999999mm |
| Transverse Pitch nom (K) | 58.55mm |
| ISO606 Tensile Strength min | 446000 N |
| Weight | 0.87kg/m |
