Branded 140-3-NO11 ANSI / AS Triplex Chain Cottered Connecting Link 1-3/4 inch Pitch
Branded 140-3-NO11 ANSI / AS Triplex Chain Cottered Connecting Link 1-3/4 inch Pitch
Regular price
£31.51
ex VAT£37.81inc. VAT
Regular price
Sale price
£31.51
ex VAT£37.81
inc. VAT
Equivalent to: 140-3-CL-COT 140-3-CL
In stock
Price Break
10+
£28.04
19+
£26.47
29+
£26.15
39+
£25.84
49+
£25.52
74+
£25.21
99+
£23.63
199+
£23.32
249+
£23.00
499+
£22.69
999+
£22.06
Couldn't load pickup availability
Description
Description

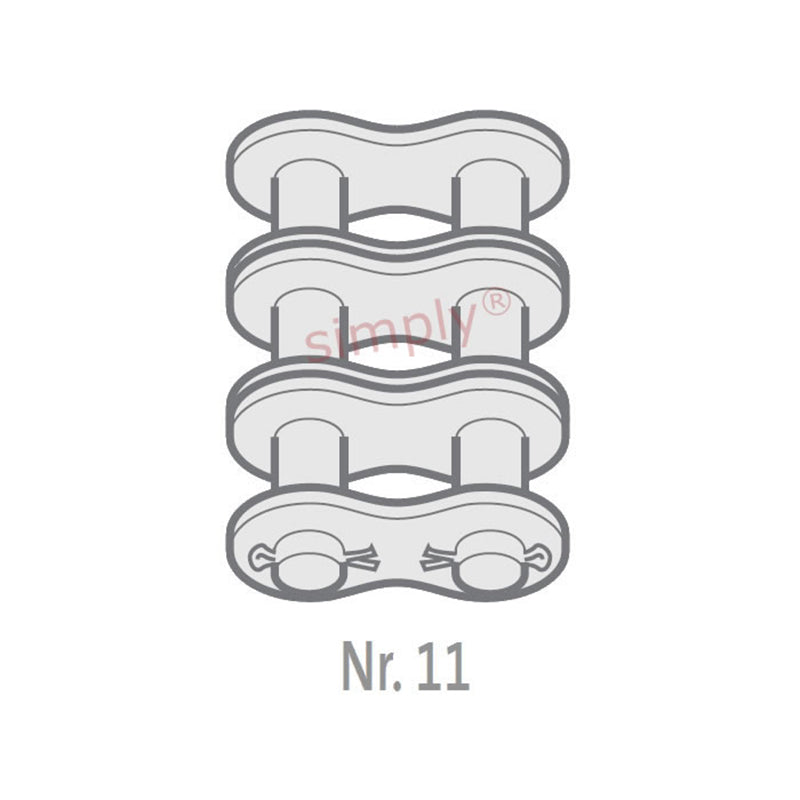

Branded COT / No. 11 ANSI Triplex Connecting Link: A connecting link supplied with two connecting pins riveted into the outer plate. The outer plate is a clearance fit on the connecting pins and is secured in a position by a split pin through the projecting end of each connecting pin.
Equivalent: 140-3-CL-COT 140-3-CL
- Brand / Quality:
- Branded - Good Quality
- Pitch:
- 44.45mm = 1.75 (1-3/4) inch
Technical
Technical
| Pitch (A) | 1.75 inch |
|---|---|
| Pitch (A) | 44.45mm |
| Inside Width min (B) | 25.22mm |
| Roller Diameter max (C) | 25.4mm |
| Plate Height max (D) | 42mm |
| Plate Width Inner max (E) | 5.6mm |
| Plate Width Outer max (F) | 5.6mm |
| Pin Diameter max (G) | 12.7mm |
| Pin Length max (H1) | 143.4mm |
| Connecting Link Extension max (J) | 14.4mm |
| ISO606 Tensile Strength min | 510000 N |
| Weight | 48.87kg/m |
