SKU: 140-2-BB-NO12-RENOLD
Renold Blue Box 140-2-NO12 ANSI / AS Duplex Chain Single Cranked Cottered Link 1-3/4 inch Pitch
Renold Blue Box 140-2-NO12 ANSI / AS Duplex Chain Single Cranked Cottered Link 1-3/4 inch Pitch
Regular price
£258.44
ex VAT£310.13inc. VAT
Regular price
Sale price
£258.44
ex VAT£310.13
inc. VAT
In stock
Price Break
10+
£230.01
19+
£217.09
29+
£214.51
39+
£211.92
49+
£209.34
74+
£206.75
99+
£193.83
199+
£191.25
249+
£188.66
499+
£186.08
999+
£180.91
Couldn't load pickup availability
Description
Description

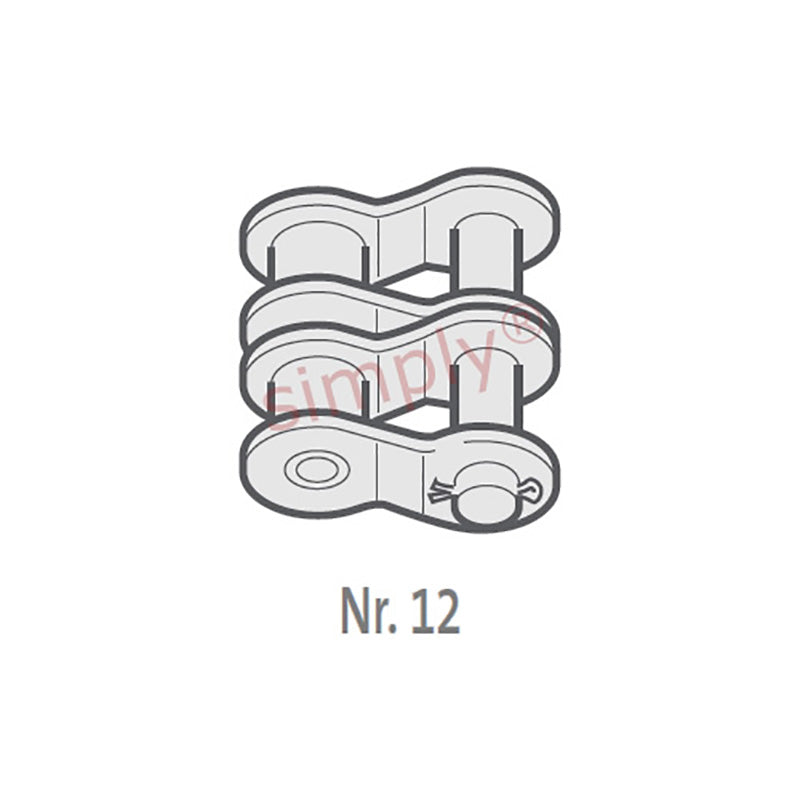

| Renold No. 12 ANSI Duplex Connecting Link: A single link with cranked plates pressed onto a bush and roller assemble at the narrow end. A clearance fit connecting pin (No. 128) is fitted at the wide end and is secured by a split pin. |
- Brand / Quality:
- Renold - High Quality
- Pitch:
- 44.45mm = 1.75 (1-3/4) inch
Technical
Technical
| Pitch (A) | 1.75 inch |
|---|---|
| Pitch (A) | 44.45mm |
| Inside Width min (B) | 25.23mm |
| Roller Diameter max (C) | 25.4mm |
| Plate Height max (D) | 42.23mm |
| Plate Width Inner max (E) | 5.61mm |
| Plate Width Outer max (F) | 5.61mm |
| Pin Diameter max (G) | 12.71mm |
| Pin Length max (H2) | 101.8mm |
| Connecting Link Extension max (J) | 5.2mm |
| Transverse Pitch nom (K) | 48.87mm |
| ISO606 Tensile Strength min | 340000 N |
| Weight | 0.77kg/m |
