SKU: 140-2-BB-NO11-RENOLD
Renold Blue Box 140-2-NO11 ANSI / AS Duplex Chain Cottered Connecting Link 1-3/4 inch Pitch
Renold Blue Box 140-2-NO11 ANSI / AS Duplex Chain Cottered Connecting Link 1-3/4 inch Pitch
Regular price
£129.42
ex VAT£155.30inc. VAT
Regular price
Sale price
£129.42
ex VAT£155.30
inc. VAT
In stock
Price Break
10+
£115.18
19+
£108.71
29+
£107.42
39+
£106.12
49+
£104.83
74+
£103.54
99+
£97.07
199+
£95.77
249+
£94.48
499+
£93.18
999+
£90.59
Couldn't load pickup availability
Description
Description

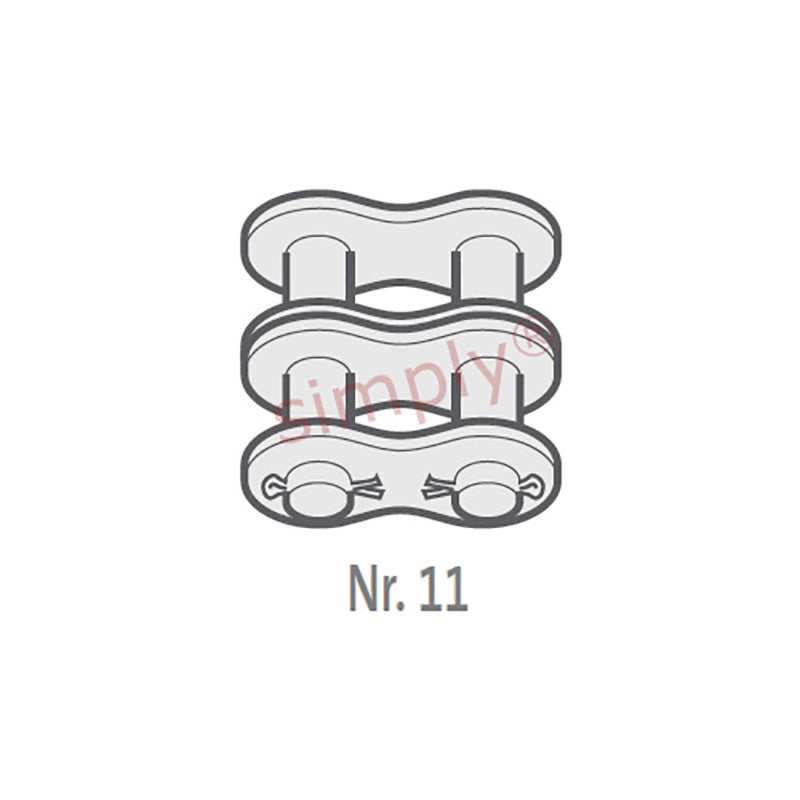

| Renold No. 11 ANSI Duplex Connecting Link: A connecting link supplied with two connecting pins riveted into the outer plate. The outer plate is a clearance fit on the connecting pins and is secured in a position by a split pin through the projecting end of each connecting pin. |
- Brand / Quality:
- Renold - High Quality
- Pitch:
- 44.45mm = 1.75 (1-3/4) inch
Technical
Technical
| Pitch (A) | 1.75 inch |
|---|---|
| Pitch (A) | 44.45mm |
| Inside Width min (B) | 25.23mm |
| Roller Diameter max (C) | 25.4mm |
| Plate Height max (D) | 42.23mm |
| Plate Width Inner max (E) | 5.61mm |
| Plate Width Outer max (F) | 5.61mm |
| Pin Diameter max (G) | 12.71mm |
| Pin Length max (H2) | 101.8mm |
| Connecting Link Extension max (J) | 5.2mm |
| Transverse Pitch nom (K) | 48.87mm |
| ISO606 Tensile Strength min | 340000 N |
| Weight | 0.77kg/m |
