SKU: 12B-3-BB-NO30-RENOLD
Renold Blue Box 12B-3-NO30 BS Triplex Chain Double Cranked Link 3/4 inch Pitch
Renold Blue Box 12B-3-NO30 BS Triplex Chain Double Cranked Link 3/4 inch Pitch
Regular price
£24.98
ex VAT£29.98inc. VAT
Regular price
Sale price
£24.98
ex VAT£29.98
inc. VAT
In stock
Price Break
10+
£22.23
19+
£20.98
29+
£20.73
39+
£20.48
49+
£20.23
74+
£19.98
99+
£18.74
199+
£18.49
249+
£18.24
499+
£17.99
999+
£17.49
Couldn't load pickup availability
Description
Description

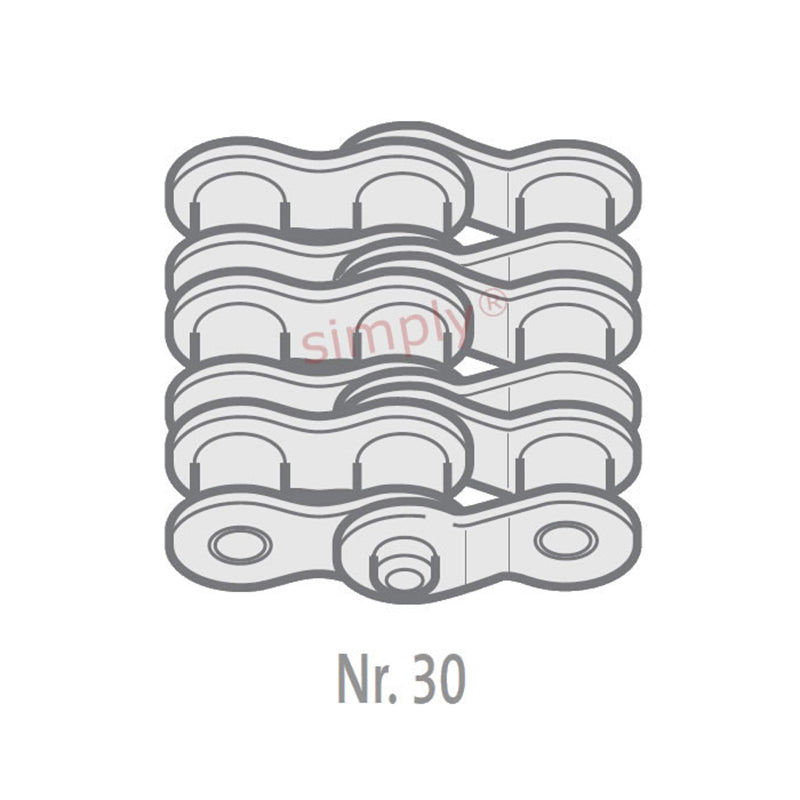

| Renold No. 30 European (BS) Triplex Connecting Link: Double cranked links are available for most sizes and types of chain. The unit consists of an inner link (No. 4), with cranked links retained permanently in position by a riveted bearing pin. |
- Brand / Quality:
- Renold - High Quality
- Pitch:
- 19.05mm = 0.75 (3/4) inch
Technical
Technical
| Pitch (A) | 0.75 inch |
|---|---|
| Pitch (A) | 19.05mm |
| Inside Width min (B) | 11.68mm |
| Roller Diameter max (C) | 12.07mm |
| Plate Height max (D) | 16mm |
| Plate Width Inner max (E) | 1.81mm |
| Plate Width Outer max (F) | 1.81mm |
| Pin Diameter max (G) | 5.72mm |
| Pin Length max (H2) | 60.9mm |
| Connecting Link Extension max (J) | 2.6mm |
| Transverse Pitch nom (K) | 19.46mm |
| ISO606 Tensile Strength min | 86700 N |
| Weight | 0.015kg/m |
