SKU: 12B-2-SNX-NO26-RENOLD

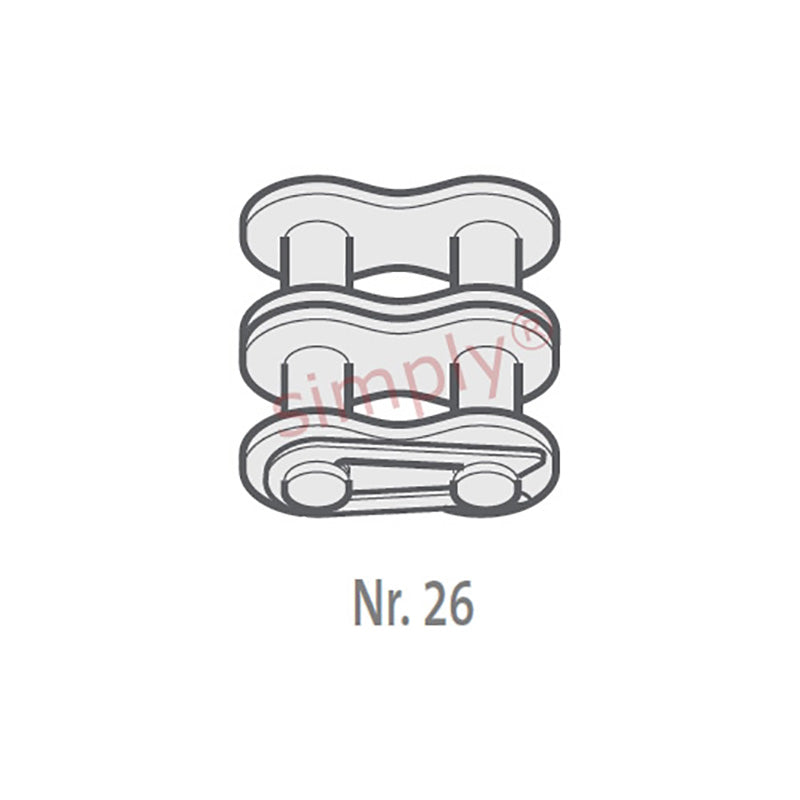

Renold SYNO 12B-2-NO26 BS Duplex Chain Connecting Link With Spring Clip 3/4 inch Pitch
Renold SYNO 12B-2-NO26 BS Duplex Chain Connecting Link With Spring Clip 3/4 inch Pitch
Regular price
£27.73
ex VAT£33.28inc. VAT
Regular price
Sale price
£27.73
ex VAT£33.28
inc. VAT
In stock
Price Break
10+
£24.68
19+
£23.29
29+
£23.02
39+
£22.74
49+
£22.46
74+
£22.18
99+
£20.80
199+
£20.52
249+
£20.24
499+
£19.97
999+
£19.41
Couldn't load pickup availability
Description
Description
| Renold No. 26 European (BS) Duplex Connecting Link: Used on short pitch chains only. Supplied with two connecting pins riveted into the outer plate, the clearance fit connecting plate being secured by means of a spring clip, No. 27, which snaps into the grooves in the pins. |
- Brand / Quality:
- Renold - High Quality
- Pitch:
- 19.05mm = 0.75 (3/4) inch
Technical
Technical
| Pitch (A) | 0.75 inch |
|---|---|
| Pitch (A) | 19.05mm |
| Inside Width min (B) | 11.68mm |
| Roller Diameter max (C) | 12.07mm |
| Plate Height max (D) | 16mm |
| Plate Width Inner max (E) | 1.81mm |
| Plate Width Outer max (F) | 1.81mm |
| Pin Diameter max (G) | 5.72mm |
| Pin Length max (H2) | 41.4mm |
| Connecting Link Extension max (J) | 2.6mm |
| Transverse Pitch nom (K) | mm |
| ISO606 Tensile Strength min | 57800 N |
| Weight | 0.015kg/m |
