SKU: 12B-1-BB-NO30-RENOLD
Renold Blue Box 12B-1-NO30 BS Simplex Double Cranked Link 3/4 inch Pitch
Renold Blue Box 12B-1-NO30 BS Simplex Double Cranked Link 3/4 inch Pitch
Regular price
£9.49
ex VAT£11.39inc. VAT
Regular price
Sale price
£9.49
ex VAT£11.39
inc. VAT
In stock
Price Break
10+
£8.45
19+
£7.97
29+
£7.88
39+
£7.78
49+
£7.69
74+
£7.59
99+
£7.12
199+
£7.02
249+
£6.93
499+
£6.83
999+
£6.64
Couldn't load pickup availability
Description
Description

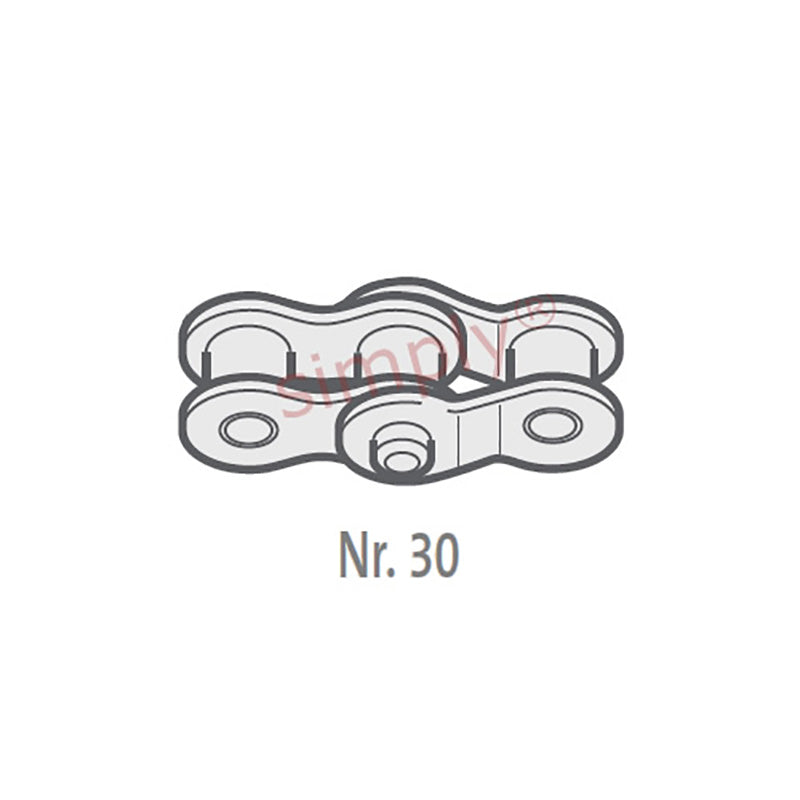

| Renold No. 30 European (BS) Simplex Connecting Link: Double cranked links are available for most sizes and types of chain. The unit consists of an inner link (No. 4), with cranked links retained permanently in position by a riveted bearing pin. |
- Brand / Quality:
- Renold - High Quality
- Pitch:
- 19.05mm = 0.75 (3/4) inch
Technical
Technical
| Pitch (A) | 0.75 inch |
|---|---|
| Pitch (A) | 19.05mm |
| Inside Width min (B) | 11.68mm |
| Roller Diameter max (C) | 12.07mm |
| Plate Height max (D) | 16mm |
| Plate Width Inner max (E) | 1.81mm |
| Plate Width Outer max (F) | 1.81mm |
| Pin Diameter max (G) | 5.72mm |
| Pin Length max (H1) | 21.9mm |
| Connecting Link Extension max (J) | 2.6mm |
| ISO606 Tensile Strength min | 28900 N |
| Weight | 0.008kg/m |
