SKU: 120-2-SD-NO11-RENOLD
Renold SD 120-2-NO11 ANSI / AS Duplex Chain Cottered Connecting Link 1-1/2 inch Pitch
Renold SD 120-2-NO11 ANSI / AS Duplex Chain Cottered Connecting Link 1-1/2 inch Pitch
Regular price
£45.81
ex VAT£54.97inc. VAT
Regular price
Sale price
£45.81
ex VAT£54.97
inc. VAT
In stock
Price Break
10+
£40.77
19+
£38.48
29+
£38.02
39+
£37.56
49+
£37.11
74+
£36.65
99+
£34.36
199+
£33.90
249+
£33.44
499+
£32.98
999+
£32.07
Couldn't load pickup availability
Description
Description

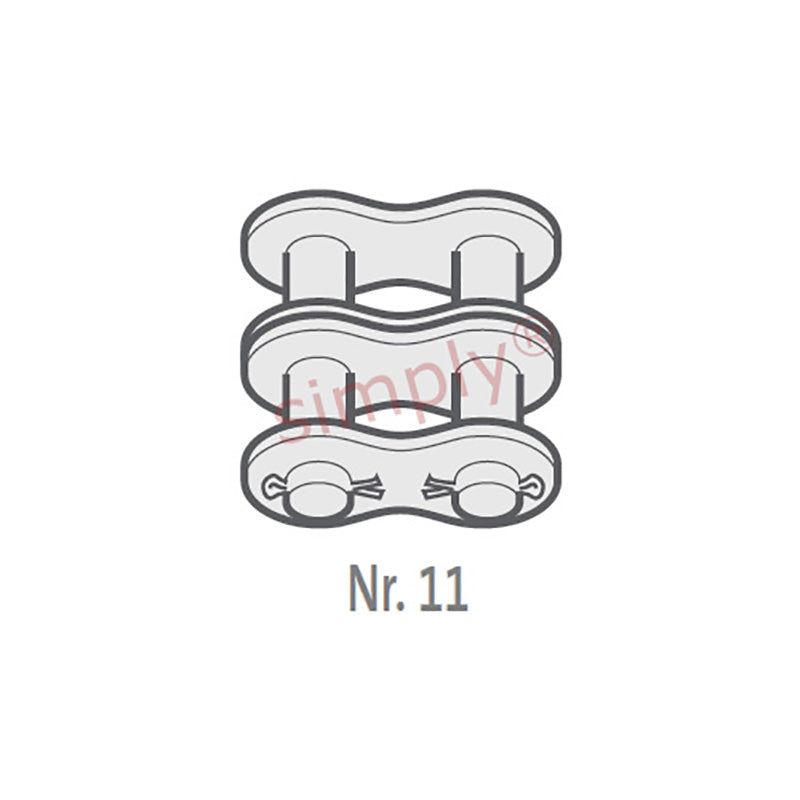

| Renold No. 11 ANSI Duplex Connecting Link: A connecting link supplied with two connecting pins riveted into the outer plate. The outer plate is a clearance fit on the connecting pins and is secured in a position by a split pin through the projecting end of each connecting pin. |
- Brand / Quality:
- Renold - High Quality
- Pitch:
- 38.1mm = 1.5 (1-1/2) inch
Technical
Technical
| Pitch (A) | 1.5 inch |
|---|---|
| Pitch (A) | 38.1mm |
| Inside Width min (B) | 25.22mm |
| Roller Diameter max (C) | 22.23mm |
| Plate Height max (D) | 36.1mm |
| Plate Width Inner max (E) | 4.7mm |
| Plate Width Outer max (F) | 4.7mm |
| Pin Diameter max (G) | 11.1mm |
| Pin Length max (H2) | 95.4mm |
| Connecting Link Extension max (J) | 4.3mm |
| Transverse Pitch nom (K) | 45.44mm |
| ISO606 Tensile Strength min | 250000 N |
| Weight | 0.156kg/m |
