Renold SD 10B-3-NO26 BS Triplex Chain Connecting Link With Spring Clip 5/8 inch Pitch
Renold SD 10B-3-NO26 BS Triplex Chain Connecting Link With Spring Clip 5/8 inch Pitch
Regular price
£6.26
ex VAT£7.51inc. VAT
Regular price
Sale price
£6.26
ex VAT£7.51
inc. VAT
In stock
Price Break
10+
£5.57
19+
£5.26
29+
£5.20
39+
£5.13
49+
£5.07
74+
£5.01
99+
£4.70
199+
£4.63
249+
£4.57
499+
£4.51
999+
£4.38
Couldn't load pickup availability
Description
Description

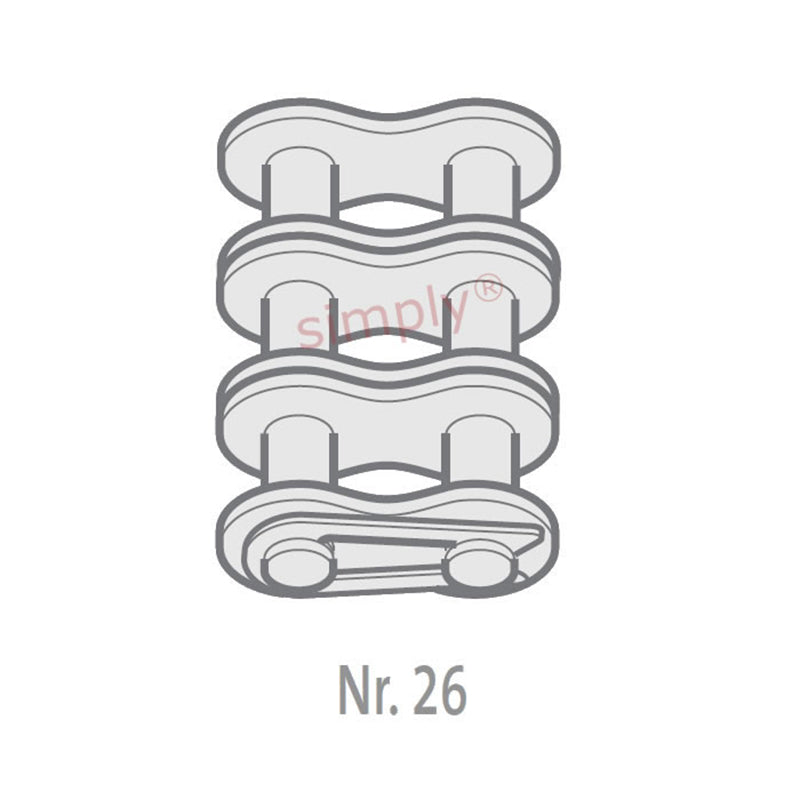

| Renold No. 26 European (BS) Triplex Connecting Link: Used on short pitch chains only. Supplied with two connecting pins riveted into the outer plate, the clearance fit connecting plate being secured by means of a spring clip, No. 27, which snaps into the grooves in the pins. |
- Brand / Quality:
- Renold - High Quality
- Pitch:
- 15.88mm = 0.625 (5/8) inch
Technical
Technical
| Pitch (A) | 0.625 inch |
|---|---|
| Pitch (A) | 15.875mm |
| Inside Width min (B) | 9.65mm |
| Roller Diameter max (C) | 10.16mm |
| Plate Height max (D) | 14.7mm |
| Plate Width Inner max (E) | 1.65mm |
| Plate Width Outer max (F) | 1.65mm |
| Pin Diameter max (G) | 5.08mm |
| Pin Length max (H1) | 53.2mm |
| Connecting Link Extension max (J) | 4.2mm |
| ISO606 Tensile Strength min | 66650 N |
| Weight | 0.014kg/m |
