SKU: 10B-3-NO12-MB
Branded 10B-3-NO12 BS Triplex Chain Single Cranked Cottered Link 5/8 inch Pitch
Branded 10B-3-NO12 BS Triplex Chain Single Cranked Cottered Link 5/8 inch Pitch
Regular price
£6.60
ex VAT£7.92inc. VAT
Regular price
Sale price
£6.60
ex VAT£7.92
inc. VAT
Equivalent to: 10B-3-OL
In stock
Price Break
10+
£5.87
19+
£5.54
29+
£5.48
39+
£5.41
49+
£5.35
74+
£5.28
99+
£4.95
199+
£4.88
249+
£4.82
499+
£4.75
999+
£4.62
Couldn't load pickup availability
Description
Description

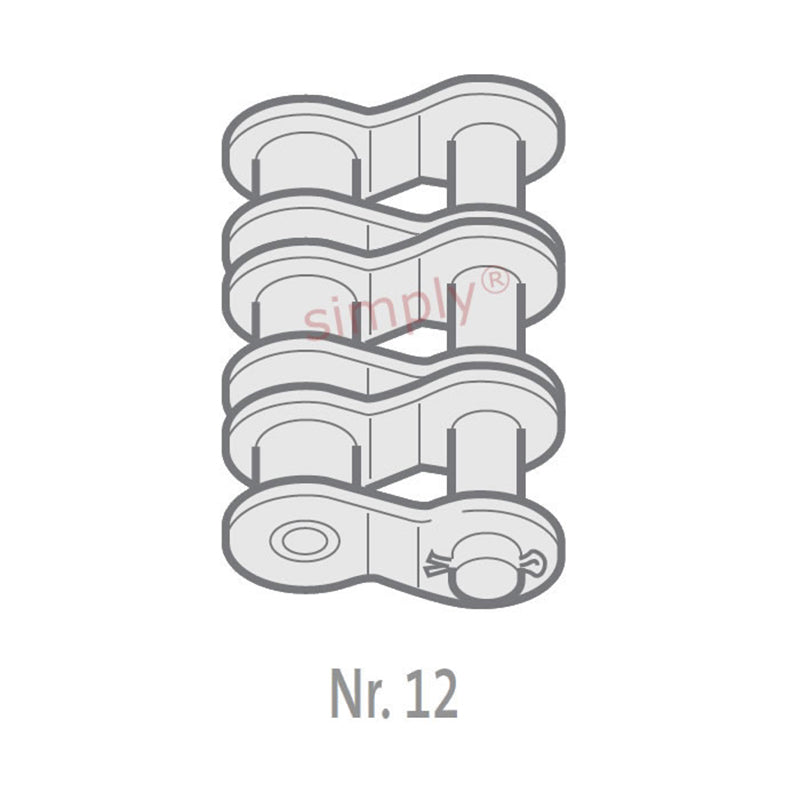

Branded OL / No. 12 European (BS) Triplex Connecting Link: A single link with cranked plates pressed onto a bush and roller assemble at the narrow end. A clearance fit connecting pin (No. 128) is fitted at the wide end and is secured by a split pin.
Equivalent: 10B-3-OL
- Brand / Quality:
- Major Brand - High Quality
- Pitch:
- 15.88mm = 0.625 (5/8) inch
Technical
Technical
| Pitch (A) | 0.625 inch |
|---|---|
| Pitch (A) | 15.875mm |
| Inside Width min (B) | 9.65mm |
| Roller Diameter max (C) | 10.16mm |
| Plate Height max (D) | 14.7mm |
| Plate Width Inner max (E) | 1.65mm |
| Plate Width Outer max (F) | 1.65mm |
| Pin Diameter max (G) | 5.08mm |
| Pin Length max (H3) | 53.2mm |
| Connecting Link Extension max (J) | 4.2mm |
| ISO606 Tensile Strength min | 66650 N |
| Weight | 0.018kg/m |
