SKU: 10B-3-BB-NO11-RENOLD
Renold Blue Box 10B-3-NO11 BS Triplex Chain Cottered Connecting Link 5/8 inch Pitch
Renold Blue Box 10B-3-NO11 BS Triplex Chain Cottered Connecting Link 5/8 inch Pitch
Regular price
£8.69
ex VAT£10.43inc. VAT
Regular price
Sale price
£8.69
ex VAT£10.43
inc. VAT
In stock
Price Break
10+
£7.73
19+
£7.30
29+
£7.21
39+
£7.13
49+
£7.04
74+
£6.95
99+
£6.52
199+
£6.43
249+
£6.34
499+
£6.26
999+
£6.08
Couldn't load pickup availability
Description
Description

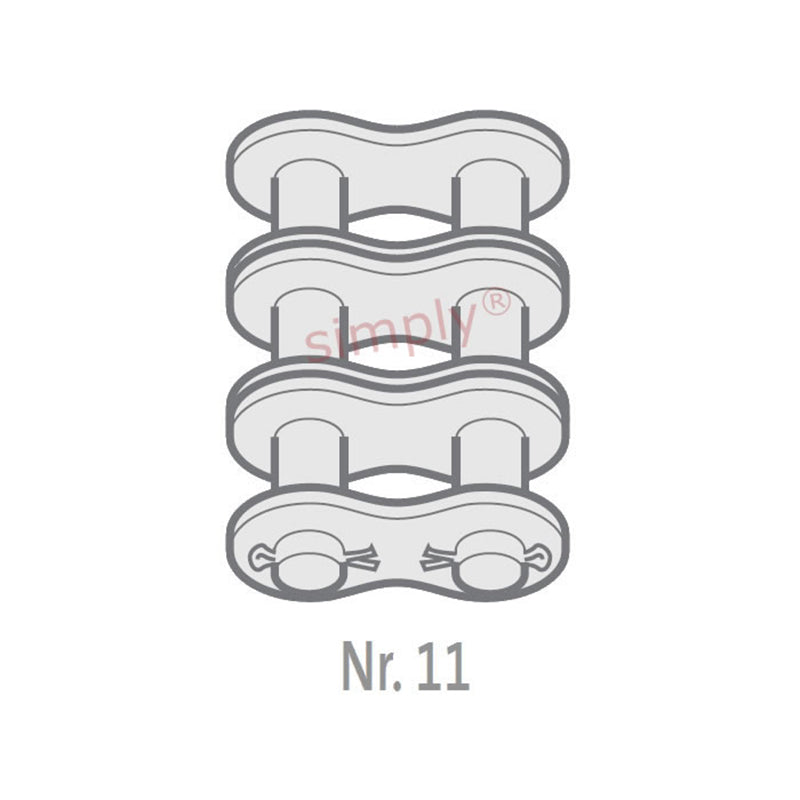

| Renold No. 11 European (BS) Triplex Connecting Link: A connecting link supplied with two connecting pins riveted into the outer plate. The outer plate is a clearance fit on the connecting pins and is secured in a position by a split pin through the projecting end of each connecting pin. |
- Brand / Quality:
- Renold - High Quality
- Pitch:
- 15.88mm = 0.625 (5/8) inch
Technical
Technical
| Pitch (A) | 0.625 inch |
|---|---|
| Pitch (A) | 15.875mm |
| Inside Width min (B) | 9.65mm |
| Roller Diameter max (C) | 10.16mm |
| Plate Height max (D) | 14.6mm |
| Plate Width Inner max (E) | 1.55mm |
| Plate Width Outer max (F) | 1.55mm |
| Pin Diameter max (G) | 5.08mm |
| Pin Length max (H2) | 52mm |
| Connecting Link Extension max (J) | 2.5mm |
| Transverse Pitch nom (K) | 16.59mm |
| ISO606 Tensile Strength min | 66700 N |
| Weight | 0.009kg/m |
