Renold SD 10B-2-NO12 BS Duplex Chain Single Cranked Cottered Link 5/8 inch Pitch
Renold SD 10B-2-NO12 BS Duplex Chain Single Cranked Cottered Link 5/8 inch Pitch
Regular price
£7.42
ex VAT£8.90inc. VAT
Regular price
Sale price
£7.42
ex VAT£8.90
inc. VAT
In stock
Price Break
10+
£6.60
19+
£6.23
29+
£6.16
39+
£6.08
49+
£6.01
74+
£5.94
99+
£5.57
199+
£5.49
249+
£5.42
499+
£5.34
999+
£5.19
Couldn't load pickup availability
Description
Description

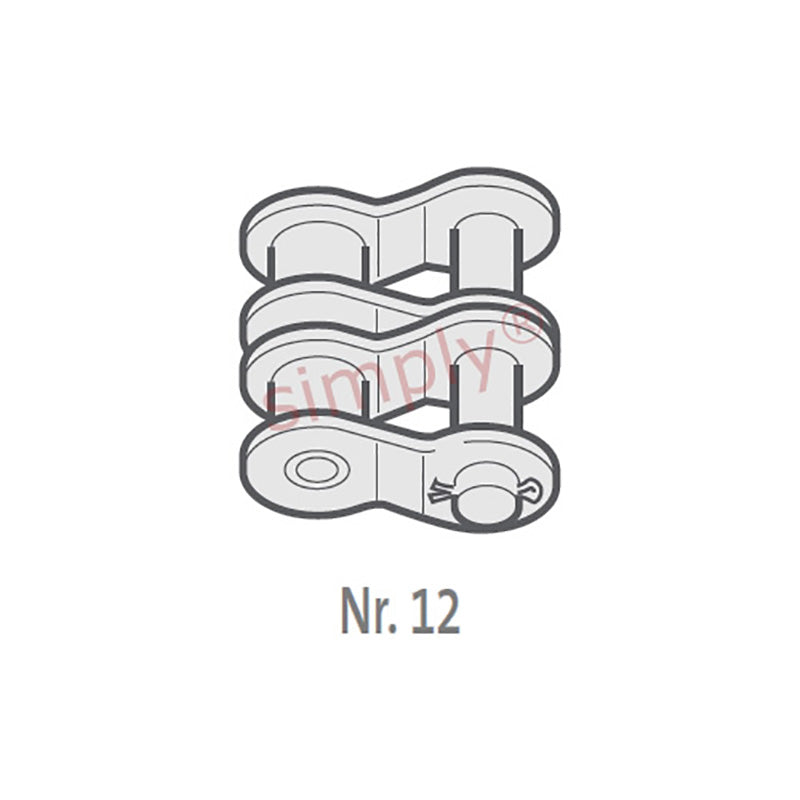

| Renold No. 12 European (BS) Duplex Connecting Link: A single link with cranked plates pressed onto a bush and roller assemble at the narrow end. A clearance fit connecting pin (No. 128) is fitted at the wide end and is secured by a split pin. |
- Brand / Quality:
- Renold - High Quality
- Pitch:
- 15.88mm = 0.625 (5/8) inch
Technical
Technical
| Pitch (A) | 0.625 inch |
|---|---|
| Pitch (A) | 15.875mm |
| Inside Width min (B) | 9.65mm |
| Roller Diameter max (C) | 10.16mm |
| Plate Height max (D) | 14.7mm |
| Plate Width Inner max (E) | 1.65mm |
| Plate Width Outer max (F) | 1.65mm |
| Pin Diameter max (G) | 5.08mm |
| Pin Length max (H2) | 36.2mm |
| Connecting Link Extension max (J) | 1.3mm |
| Transverse Pitch nom (K) | 16.59mm |
| ISO606 Tensile Strength min | 44500 N |
| Weight | 0.009kg/m |
