SKU: 10B-2-NO26-CHG
Challenge 10B-2-NO26 BS Duplex Chain Connecting Link With Spring Clip 5/8 inch Pitch
Challenge 10B-2-NO26 BS Duplex Chain Connecting Link With Spring Clip 5/8 inch Pitch
Regular price
£2.99
ex VAT£3.59inc. VAT
Regular price
Sale price
£2.99
ex VAT£3.59
inc. VAT
In stock
Price Break
10+
£2.66
19+
£2.51
29+
£2.48
39+
£2.45
49+
£2.42
74+
£2.39
99+
£2.24
199+
£2.21
249+
£2.18
499+
£2.15
999+
£2.09
Couldn't load pickup availability
Description
Description

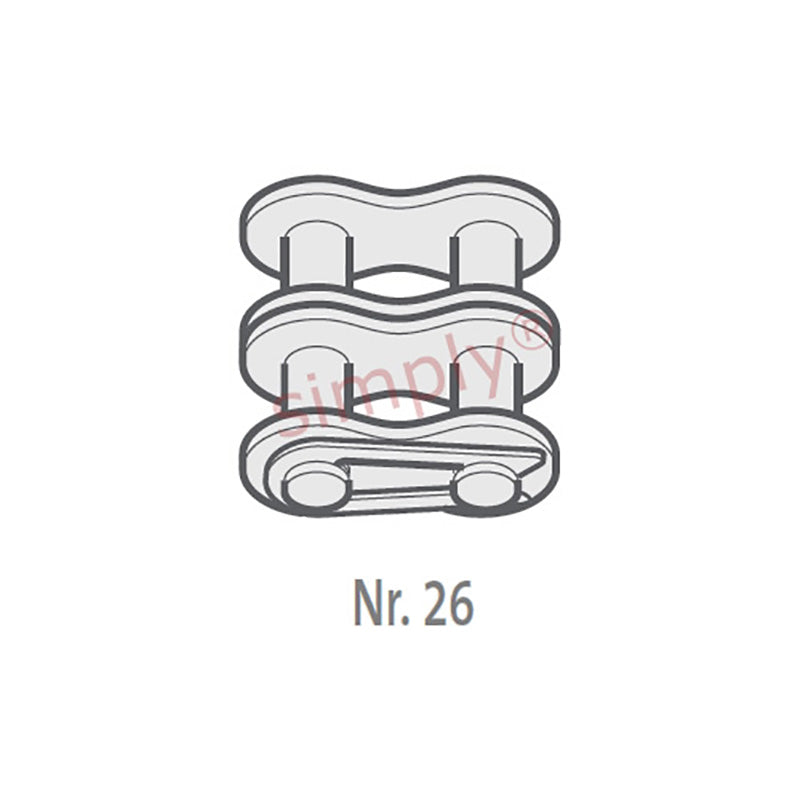

No. 26 European (BS) Simplex Connecting Link: Used on short pitch chains only. Supplied with two connecting pins riveted into the outer plate, the clearance fit connecting plate being secured by means of a spring clip, No. 27, which snaps into the grooves in the pins.
- Brand / Quality:
- Challenge - Good Quality
- Pitch:
- 15.88mm = 0.625 (5/8) inch
Technical
Technical
| Pitch (A) | 0.625 inch |
|---|---|
| Pitch (A) | 15.875mm |
| Inside Width min (B) | 9.65mm |
| Roller Diameter max (C) | 10.16mm |
| Plate Height max (D) | 14.7mm |
| Plate Width Inner max (E) | 1.65mm |
| Plate Width Outer max (F) | 1.65mm |
| Pin Diameter max (G) | 5.08mm |
| Pin Length max (H2) | 36.2mm |
| Connecting Link Extension max (J) | 1.3mm |
| Transverse Pitch nom (K) | 16.59mm |
| ISO606 Tensile Strength min | 44500 N |
| Weight | 0.009kg/m |
