SKU: 1075-75DECG-RHP

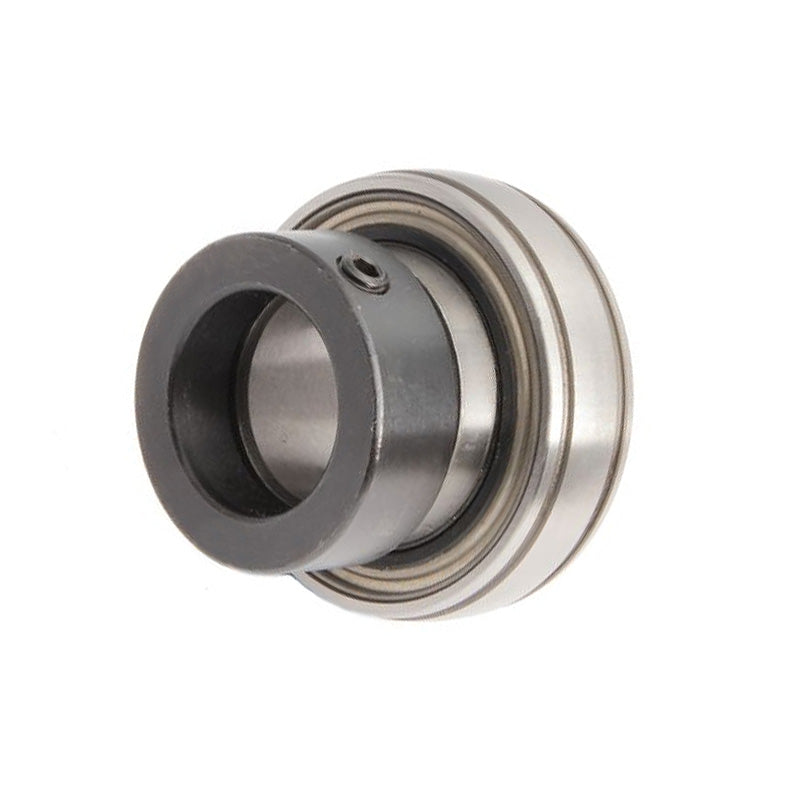

RHP 1075-75DECG Spherical Outer Full Width Bearing Insert 75mm Bore 130mm Outside Diameter
RHP 1075-75DECG Spherical Outer Full Width Bearing Insert 75mm Bore 130mm Outside Diameter
Regular price
£213.63
ex VAT£256.36inc. VAT
Regular price
Sale price
£213.63
ex VAT£256.36
inc. VAT
In stock
Price Break
10+
£190.13
20+
£179.45
30+
£177.32
40+
£175.18
50+
£173.04
75+
£170.91
100+
£160.23
200+
£158.09
250+
£155.95
500+
£153.82
1000+
£149.54
Share this product
Description
Description
|
RHP 1000-DEC-G Series: Full width bearing insert with spherical outer race and eccentric collar and grub screw to allow tightening against the shaft once fitted. These inserts are ideal replacements for housed types which can easily be removed from the housings when replacement is required Benefits: Cost effective replacement insert, re-lubricatable, eccentric collar fixing |
- Brand / Quality:
- RHP - High Quality
- Inside Diameter:
- 75mm
- Outside Diameter:
- 130mm
- Style:
- 1075
Technical
Technical
| Bore | 75mm |
|---|---|
| D | 130mm |
| C | 25mm |
| B3 | 91.72mm |
| s2 | 37.37mm |
| d2 | 101.6mm |
| r | 1.5mm |
| Dynamic load Cr | 66000 N |
| Static load Cor | 49500 N |
| Rec max speed | 2300 rpm |
| Weight | 2.94 kg |
