SKU: 100AT5/390
100AT5/390 ContiTech Standard Synchroflex Timing Belt 100mm Width 5mm Pitch 78 Teeth
100AT5/390 ContiTech Standard Synchroflex Timing Belt 100mm Width 5mm Pitch 78 Teeth
Regular price
£96.39
ex VAT£115.67inc. VAT
Regular price
Sale price
£96.39
ex VAT£115.67
inc. VAT
In stock
Price Break
3+
£85.79
5+
£80.97
10+
£80.00
15+
£79.04
20+
£78.08
30+
£77.11
40+
£72.29
50+
£71.33
60+
£70.36
75+
£69.40
100+
£67.47
Description
Description

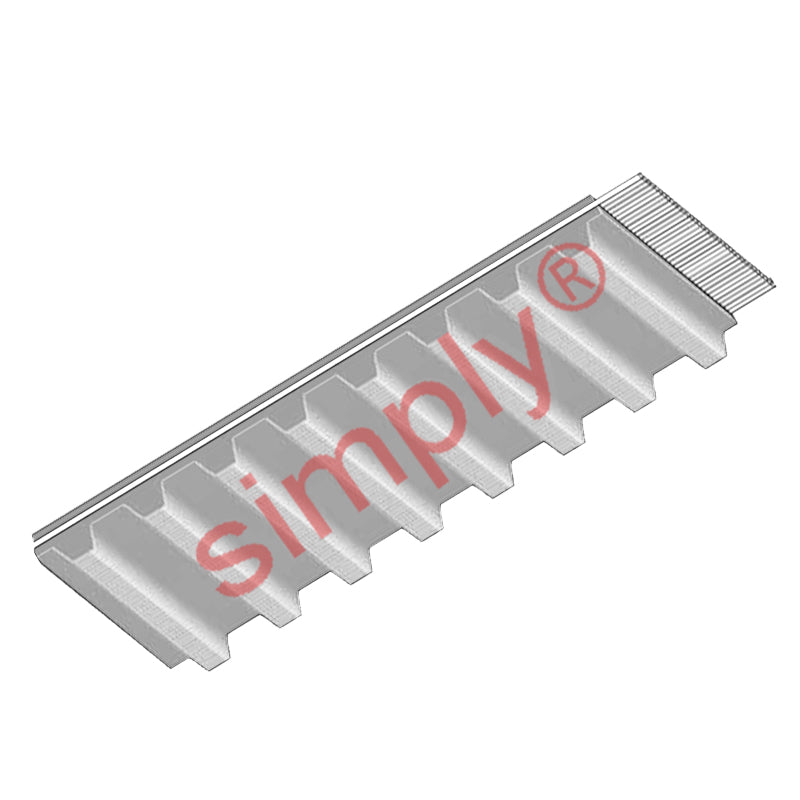

AT Standard SYNCHROFLEX® Timing Belts: This belt is manufactured by ContiTech, specialists in rubber and plastics technology. This Synchroflex belt is a truly endless belt, suitable for AT pulleys.
Standard Synchroflex belts consist of just two components, a wear-resistant Contilan carcass and high-grade endless steel wire tension members. This construction provides high flank load capacity and low elastic elongation which makes them unsurpassed for quality and accuracy.
Benefits: High power AT profile, low elastic elongation and high flank load capacity.
- Brand / Quality:
- ContiTech - High Quality
- Thickness:
- 1.5mm
- Belt Width Approx:
- 100mm
- Belt Length Approx:
- 390mm
- Number of Teeth:
- 78
- Item Type:
- AT5 Standard Timing Belt
Technical
Technical
| No of Teeth | 78 |
|---|---|
| Belt Width | 100mm |
| Belt Pitch | 5mm (AT5) |
| Belt Length | 390mm |
| Belt Thickness (hs) | 1.5mm |
| Tooth Height (ht) | 1.2mm |
| Tooth Pitch (t) | 5mm |
| Flank Angle (f) | 50 deg |
| Tension Member Loadings | 8610 N |
| Belt Weight (per metre) | 0.34kg |
