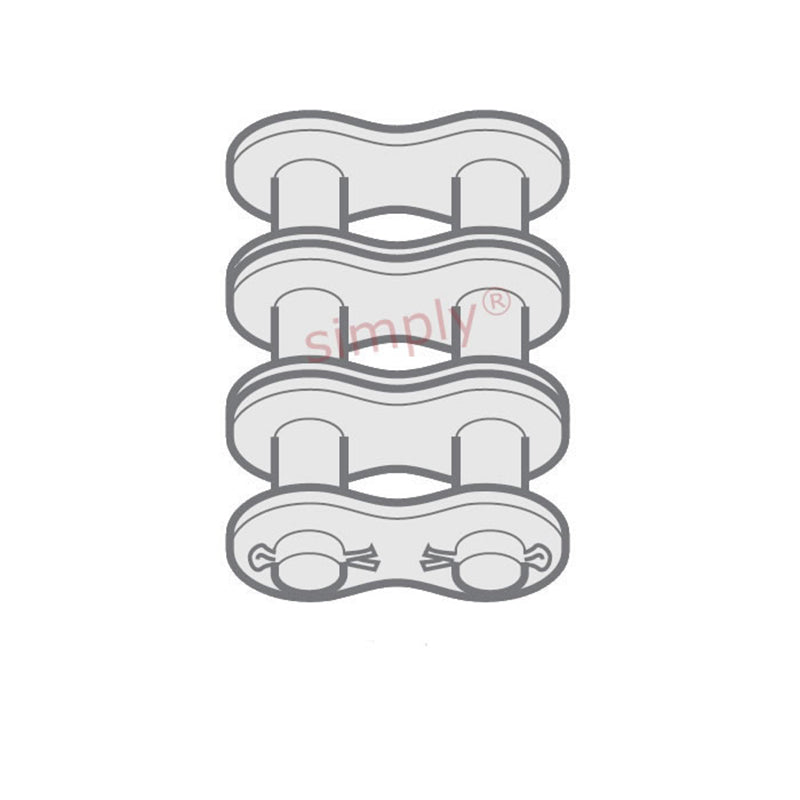

Renold Synergy 100-3-NO58 ANSI / AS Triplex Chain Cottered Connecting Link 1-1/4 inch Pitch
Renold Synergy 100-3-NO58 ANSI / AS Triplex Chain Cottered Connecting Link 1-1/4 inch Pitch
Regular price
£154.49
ex VAT£185.39inc. VAT
Regular price
Sale price
£154.49
ex VAT£185.39
inc. VAT
In stock
Price Break
10+
£137.50
19+
£129.77
29+
£128.23
39+
£126.68
49+
£125.14
74+
£123.59
99+
£115.87
199+
£114.32
249+
£112.78
499+
£111.23
999+
£108.14
Couldn't load pickup availability
Description
Description
| Renold No. 58 ANSI Triplex Connecting Link: A connecting link supplied with two connecting pins riveted into the outer plate. The outer plate is a clearance fit on the connecting pins and is secured in a position by a split pin through the projecting end of each connecting pin. |
- Brand / Quality:
- Renold - High Quality
- Pitch:
- 31.75mm = 1.25 (1-1/4) inch
Technical
Technical
| Pitch (A) | 1.25 inch |
|---|---|
| Pitch (A) | 31.75mm |
| Inside Width min (B) | 18.9mm |
| Roller Diameter max (C) | 19.05mm |
| Plate Height max (D) | 30.17mm |
| Plate Width Inner max (E) | 4.06mm |
| Plate Width Outer max (F) | 4.06mm |
| Pin Diameter max (G) | 9.54mm |
| Pin Length max (H2) | 111.2mm |
| Connecting Link Extension max (J) | 4.2mm |
| Transverse Pitch nom (K) | 35.76mm |
| ISO606 Tensile Strength min | 261000 N |
| Weight | 0.08kg/m |
