SKU: 100-3-BB-NO58-RENOLD

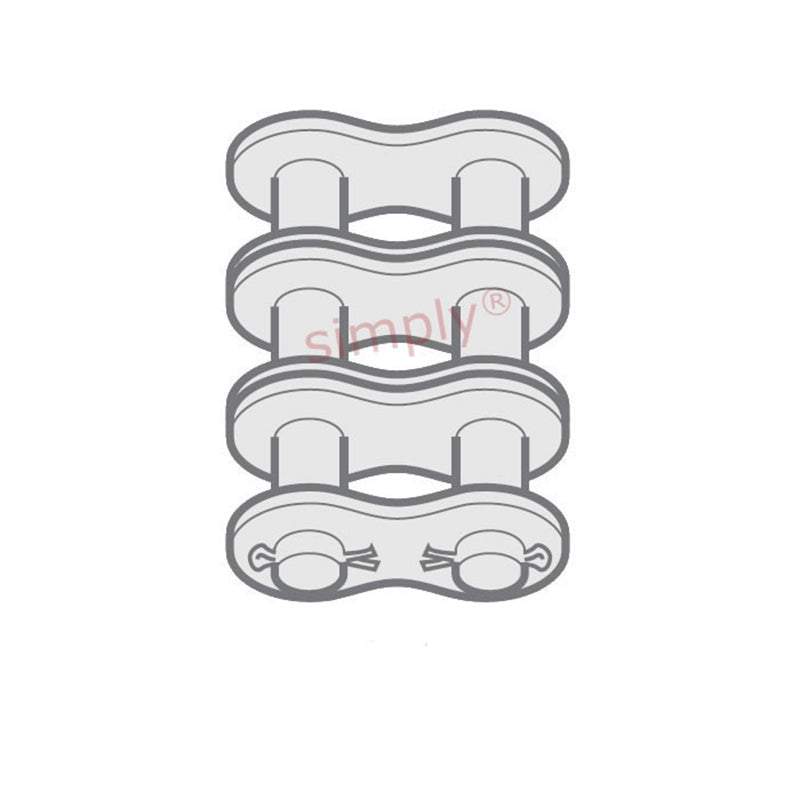

Renold Blue Box 100-3-NO58 ANSI / AS Triplex Chain Cottered Connecting Link 1-1/4 inch Pitch
Renold Blue Box 100-3-NO58 ANSI / AS Triplex Chain Cottered Connecting Link 1-1/4 inch Pitch
Regular price
£65.56
ex VAT£78.67inc. VAT
Regular price
Sale price
£65.56
ex VAT£78.67
inc. VAT
In stock
Price Break
10+
£58.35
19+
£55.07
29+
£54.41
39+
£53.76
49+
£53.10
74+
£52.45
99+
£49.17
199+
£48.51
249+
£47.86
499+
£47.20
999+
£45.89
Couldn't load pickup availability
Description
Description
| Renold No. 58 ANSI Triplex Connecting Link: A connecting link supplied with two connecting pins riveted into the outer plate. The outer plate is a clearance fit on the connecting pins and is secured in a position by a split pin through the projecting end of each connecting pin. |
- Brand / Quality:
- Renold - High Quality
- Pitch:
- 31.75mm = 1.25 (1-1/4) inch
Technical
Technical
| Pitch (A) | 1.25 inch |
|---|---|
| Pitch (A) | 31.75mm |
| Inside Width min (B) | 18.9mm |
| Roller Diameter max (C) | 19.05mm |
| Plate Height max (D) | 30.17mm |
| Plate Width Inner max (E) | 4.06mm |
| Plate Width Outer max (F) | 4.06mm |
| Pin Diameter max (G) | 9.54mm |
| Pin Length max (H2) | 111.2mm |
| Connecting Link Extension max (J) | 4.2mm |
| Transverse Pitch nom (K) | 35.76mm |
| ISO606 Tensile Strength min | 261000 N |
| Weight | 0.12kg/m |
