SKU: 100-2-NO12-RENOLD
Renold 100-2-NO12 ANSI / AS Duplex Chain Single Cranked Cottered Link 1-1/4 inch Pitch
Renold 100-2-NO12 ANSI / AS Duplex Chain Single Cranked Cottered Link 1-1/4 inch Pitch
Regular price
£15.10
ex VAT£18.12inc. VAT
Regular price
Sale price
£15.10
ex VAT£18.12
inc. VAT
In stock
Price Break
10+
£13.44
19+
£12.68
29+
£12.53
39+
£12.38
49+
£12.23
74+
£12.08
99+
£11.33
199+
£11.17
249+
£11.02
499+
£10.87
999+
£10.57
Couldn't load pickup availability
Description
Description

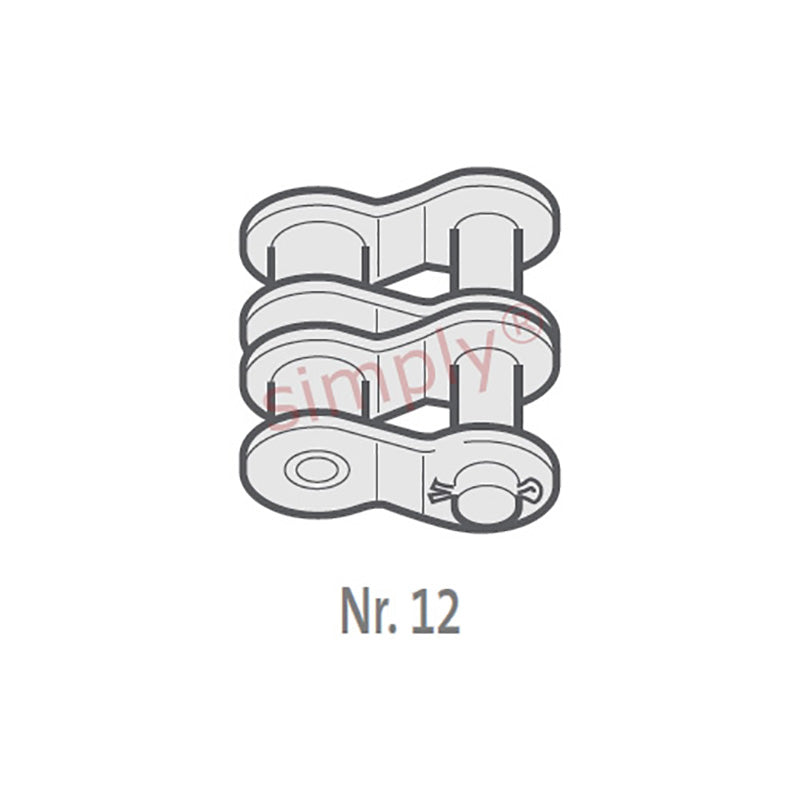

Branded OL / No. 12 ANSI Duplex Connecting Link: A single link with cranked plates pressed onto a bush and roller assemble at the narrow end. A clearance fit connecting pin (No. 128) is fitted at the wide end and is secured by a split pin.
- Brand / Quality:
- Renold - High Quality
- Pitch:
- 31.75mm = 1.25 (1-1/4) inch
Technical
Technical
| Pitch (A) | 1.25 inch |
|---|---|
| Pitch (A) | 31.75mm |
| Inside Width min (B) | 18.9mm |
| Roller Diameter max (C) | 19.05mm |
| Plate Height max (D) | 30.1mm |
| Plate Width Inner max (E) | 3.9mm |
| Plate Width Outer max (F) | 3.9mm |
| Pin Diameter max (G) | 9.53mm |
| Pin Length max (H2) | 76.2mm |
| Connecting Link Extension max (J) | 4.3mm |
| Transverse Pitch nom (K) | 35.76mm |
| ISO606 Tensile Strength min | 174000 N |
| Weight | 0.08kg/m |
