SKU: 1/4X26-BSF2-KF

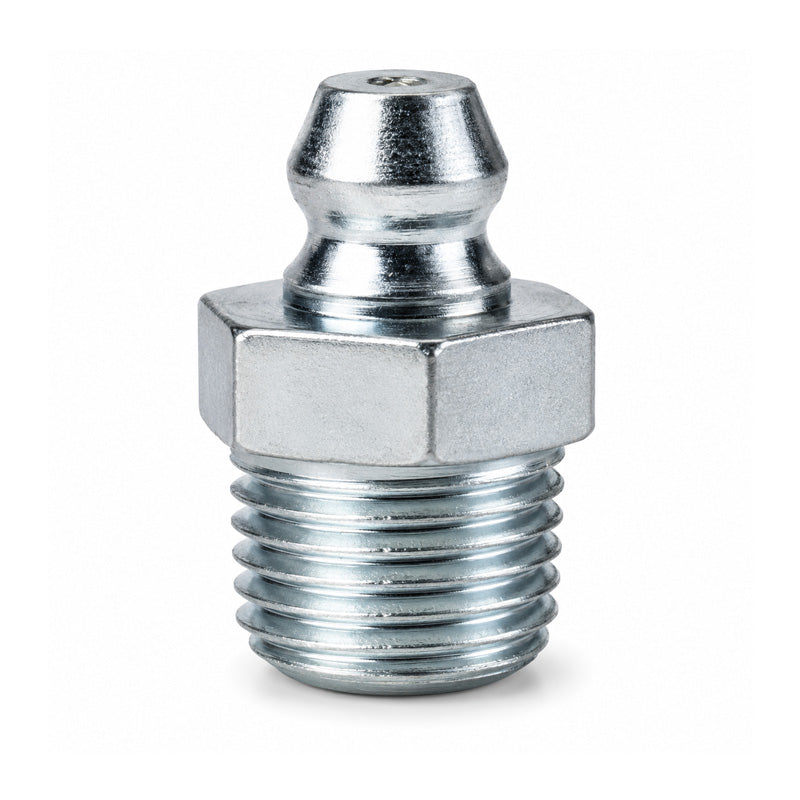

1/4x26 BSF Two Piece Hardened Mild Steel Zinc Plated Straight Hydraulic Grease Nipples - Pack of 500
1/4x26 BSF Two Piece Hardened Mild Steel Zinc Plated Straight Hydraulic Grease Nipples - Pack of 500
Regular price
£386.42
ex VAT£463.70inc. VAT
Regular price
Sale price
£386.42
ex VAT£463.70
inc. VAT
In stock
Price Break
10+
£343.91
19+
£324.59
29+
£320.73
39+
£316.86
49+
£313.00
74+
£309.13
99+
£289.81
199+
£285.95
249+
£282.08
499+
£278.22
999+
£270.49
Description
Description
Button Head Grease Fittings: Kingfisher superior button head fittings are manufactured from a high quality mild steel and are case hardened to prevent wear on the head profile. Amongst our range of button head fittings there are fittings of different sizes and also thread types.
Benefits: Corrosion resistance, large range available, cost effective.
Benefits: Corrosion resistance, large range available, cost effective.
- Brand / Quality:
- Kingfisher - High Quality
- Thread Size:
- BSF 1/4x26
- Thread Length:
- 5.84mm = 0.23 inch
- Length:
- 19.56mm = 0.77 inch
- Angle:
- Straight
Technical
Technical
| --- | BSF Thread (British Standard Fine) |
|---|---|
| Recommended To Fit | BSF 1/4x26 |
| Total Length A | 19.56mm = 0.77 inch |
| Thread Length B | 5.84mm = 0.23 inch |
| Nipple Angle | Straight |
| Required Tool Size (Hex Size) | 15mm |
| Weight | 0.03 kg |
